- Thương hiệu và xuất xứ:
+ TOP CABLE/ XUẤT XỨ: SPAIN
- Đơn hàng tối thiểu: 10m/cuộn
- Tình Trạng: Còn hàng - Kho ĐÔNG NGUYÊN GIA - QUẬN 10
- Giá bán: Liên hệ

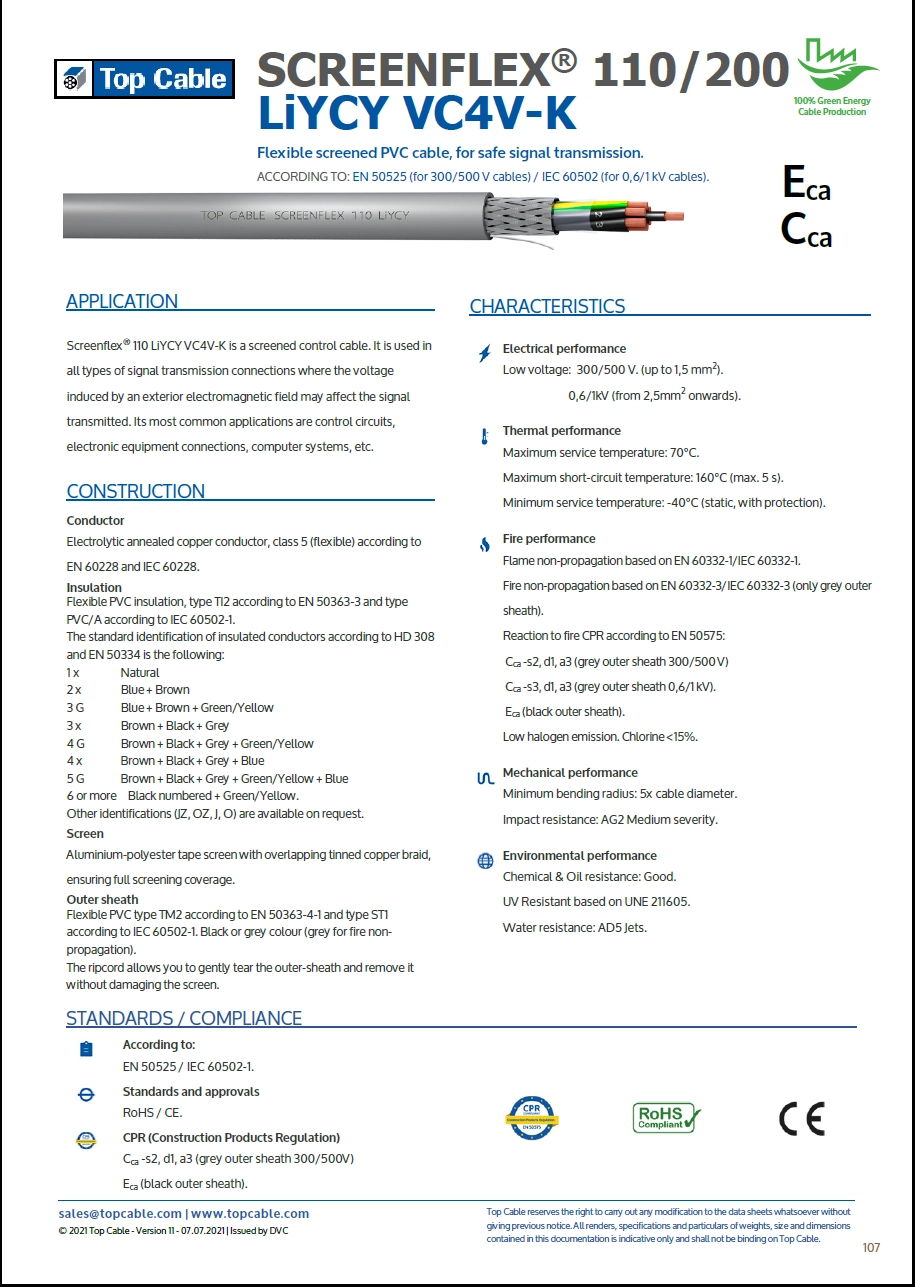

CHARACTERISTICS
Electrical performance
Low voltage: 300/500 V. (up to 1,5 mm2)
0,6/1kV (from 2,5mm2 onwards).
hermal performance
Maximum service temperature: 70°C.
Maximum short-circuit temperature: 160°C (max. 5 s).
Minimum service temperature: -40°C (static, with protection).
Fire performance
Flame non-propagation based on EN 60332-1/IEC 60332-1.
Fire non-propagation based on EN 60332-3/IEC 60332-3 (only grey outer sheath).
Reaction to fire CPR according to EN 50575:
Cca -s2, d1, a3 (grey outer sheath 300/500 V)
Cca -s3, d1, a3 (grey outer sheath 0,6/1 kV).
Eca (black outer sheath).
Low halogen emission. Chlorine <15%.
Mechanical performance
Minimum bending radius: 5x cable diameter.
Impact resistance: AG2 Medium severity.
Environmental performance
Chemical & Oil resistance: Good.
UV Resistant based on UNE 211605.
.
STANDARDS / COMPLIANCE
According to:
EN 50525 / IEC 60502-1.
Standards and approvals
RoHS / CE.
CPR (Construction Products Regulation)
Cca -s2, d1, a3 (grey outer sheath 300/500V) Eca (black outer sheath).
Nhà nhập khẩu cáp điện Châu Âu UY TÍN - CHẤT LƯỢNG - ĐÓNG GÓI CHUYÊN NGHIỆP- GIAO HÀNG NHANH CHÓNG tại Việt Nam
CÔNG TY TNHH THƯƠNG MẠI VÀ XUẤT NHẬP KHẨU ĐÔNG NGUYÊN GIA
Tel : 028.62648106
Hotline : 0903624025 - 0909624025 ( Mr. Duy Đông)
Email: dongdng@dongnguyengia.com.vn
PHAN TRỌNG TUẤN (Mr) - 0908828979
Email: tuandng@dongnguyengia.com.vn
VŨ ĐÌNH HÀO KIỆT (Mr) - 0983778853
Email: kietdng@dongnguyengia.com.vn
HỒ THỊ CẦM (Mrs) - 0933467891
Email: camdng@dongnguyengia.com.vn
PHẠM ĐỨC MINH (Mr) - 0908899512
Email: minhdng@dongnguyengia.com.vn
NGUYỄN HỮU TOÀN THẮNG (Mr) - 0918508586
Email: thangdng@dongnguyengia.com.vn
CHARACTERISTICS
Electrical performance
Low voltage: 300/500 V. (up to 1,5 mm2)
0,6/1kV (from 2,5mm2 onwards).
hermal performance
Maximum service temperature: 70°C.
Maximum short-circuit temperature: 160°C (max. 5 s).
Minimum service temperature: -40°C (static, with protection).
Fire performance
Flame non-propagation based on EN 60332-1/IEC 60332-1.
Fire non-propagation based on EN 60332-3/IEC 60332-3 (only grey outer sheath).
Reaction to fire CPR according to EN 50575:
Cca -s2, d1, a3 (grey outer sheath 300/500 V)
Cca -s3, d1, a3 (grey outer sheath 0,6/1 kV).
Eca (black outer sheath).
Low halogen emission. Chlorine <15%.
Mechanical performance
Minimum bending radius: 5x cable diameter.
Impact resistance: AG2 Medium severity.
Environmental performance
Chemical & Oil resistance: Good.
UV Resistant based on UNE 211605.
.
STANDARDS / COMPLIANCE
According to:
EN 50525 / IEC 60502-1.
Standards and approvals
RoHS / CE.
CPR (Construction Products Regulation)
Cca -s2, d1, a3 (grey outer sheath 300/500V) Eca (black outer sheath).
