- Thương hiệu và xuất xứ:
+ TOP CABLE/ XUẤT XỨ: SPAIN
- Đơn hàng tối thiểu: 10m/cuộn
- Tình Trạng: Còn hàng - Kho ĐÔNG NGUYÊN GIA - QUẬN 10
- Giá bán: Liên hệ

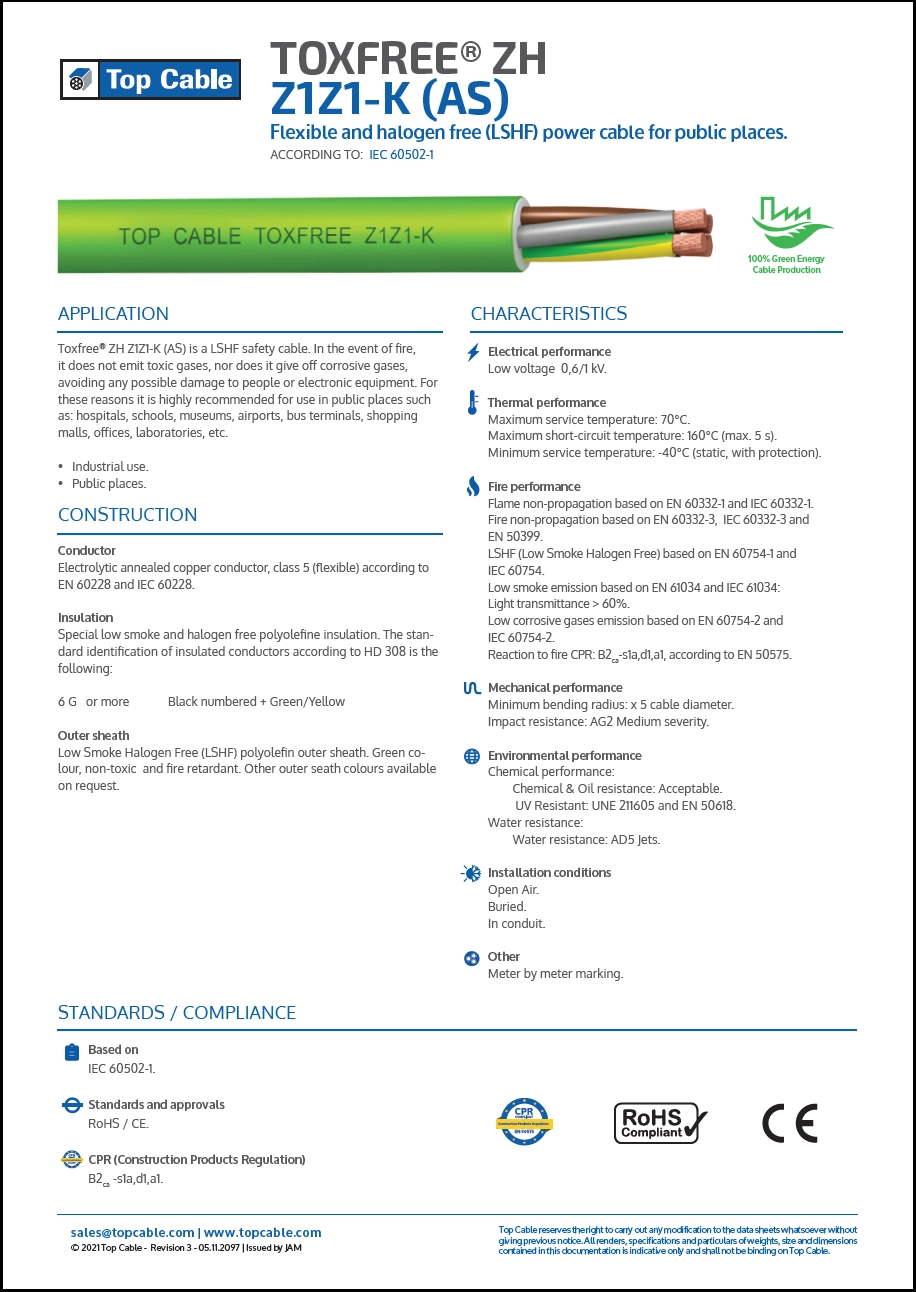

CHARACTERISTICS
Electrical performance
Low voltage 0,6/1 kV.
Thermal performance
Maximum service temperature: 70°C.
Maximum short-circuit temperature: 160°C (max. 5 s).
Minimum service temperature: -40°C (static, with protection).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3, IEC 60332-3 and EN 50399.
LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754.
Low smoke emission based on EN 61034 and IEC 61034:
Light transmittance > 60%.
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Reaction to fire CPR: B2ca-s1a,d1,a1, according to EN 50575.
Mechanical performance
Minimum bending radius: x 5 cable diameter.
Impact resistance: AG2 Medium severity.
Environmental performance
Chemical performance:
Chemical & Oil resistance: Acceptable.
UV Resistant: UNE 211605 and EN 50618. Water resistance:
Water resistance: AD5 Jets.
Installation conditions
Open Air.
Buried.
In conduit.
Other
Meter by meter marking.
Nhà nhập khẩu cáp điện Châu Âu UY TÍN - CHẤT LƯỢNG - ĐÓNG GÓI CHUYÊN NGHIỆP- GIAO HÀNG NHANH CHÓNG tại Việt Nam
CÔNG TY TNHH THƯƠNG MẠI VÀ XUẤT NHẬP KHẨU ĐÔNG NGUYÊN GIA
Tel : 028.62648106
Hotline : 0903624025 - 0909624025 ( Mr. Duy Đông)
Email: dongdng@dongnguyengia.com.vn
PHAN TRỌNG TUẤN (Mr) - 0908828979
Email: tuandng@dongnguyengia.com.vn
VŨ ĐÌNH HÀO KIỆT (Mr) - 0983778853
Email: kietdng@dongnguyengia.com.vn
HỒ THỊ CẦM (Mrs) - 0933467891
Email: camdng@dongnguyengia.com.vn
PHẠM ĐỨC MINH (Mr) - 0908899512
Email: minhdng@dongnguyengia.com.vn
NGUYỄN HỮU TOÀN THẮNG (Mr) - 0918508586
Email: thangdng@dongnguyengia.com.vn
CHARACTERISTICS
Electrical performance
Low voltage 0,6/1 kV.
Thermal performance
Maximum service temperature: 70°C.
Maximum short-circuit temperature: 160°C (max. 5 s).
Minimum service temperature: -40°C (static, with protection).
Fire performance
Flame non-propagation based on EN 60332-1 and IEC 60332-1.
Fire non-propagation based on EN 60332-3, IEC 60332-3 and EN 50399.
LSHF (Low Smoke Halogen Free) based on EN 60754-1 and IEC 60754.
Low smoke emission based on EN 61034 and IEC 61034:
Light transmittance > 60%.
Low corrosive gases emission based on EN 60754-2 and IEC 60754-2.
Reaction to fire CPR: B2ca-s1a,d1,a1, according to EN 50575.
Mechanical performance
Minimum bending radius: x 5 cable diameter.
Impact resistance: AG2 Medium severity.
Environmental performance
Chemical performance:
Chemical & Oil resistance: Acceptable.
UV Resistant: UNE 211605 and EN 50618. Water resistance:
Water resistance: AD5 Jets.
Installation conditions
Open Air.
Buried.
In conduit.
Other
Meter by meter marking.
