- Thương hiệu và xuất xứ:
+ TOP CABLE/ XUẤT XỨ: SPAIN
- Đơn hàng tối thiểu: 10m/cuộn
- Tình Trạng: Còn hàng - Kho ĐÔNG NGUYÊN GIA - QUẬN 10
- Giá bán: Liên hệ

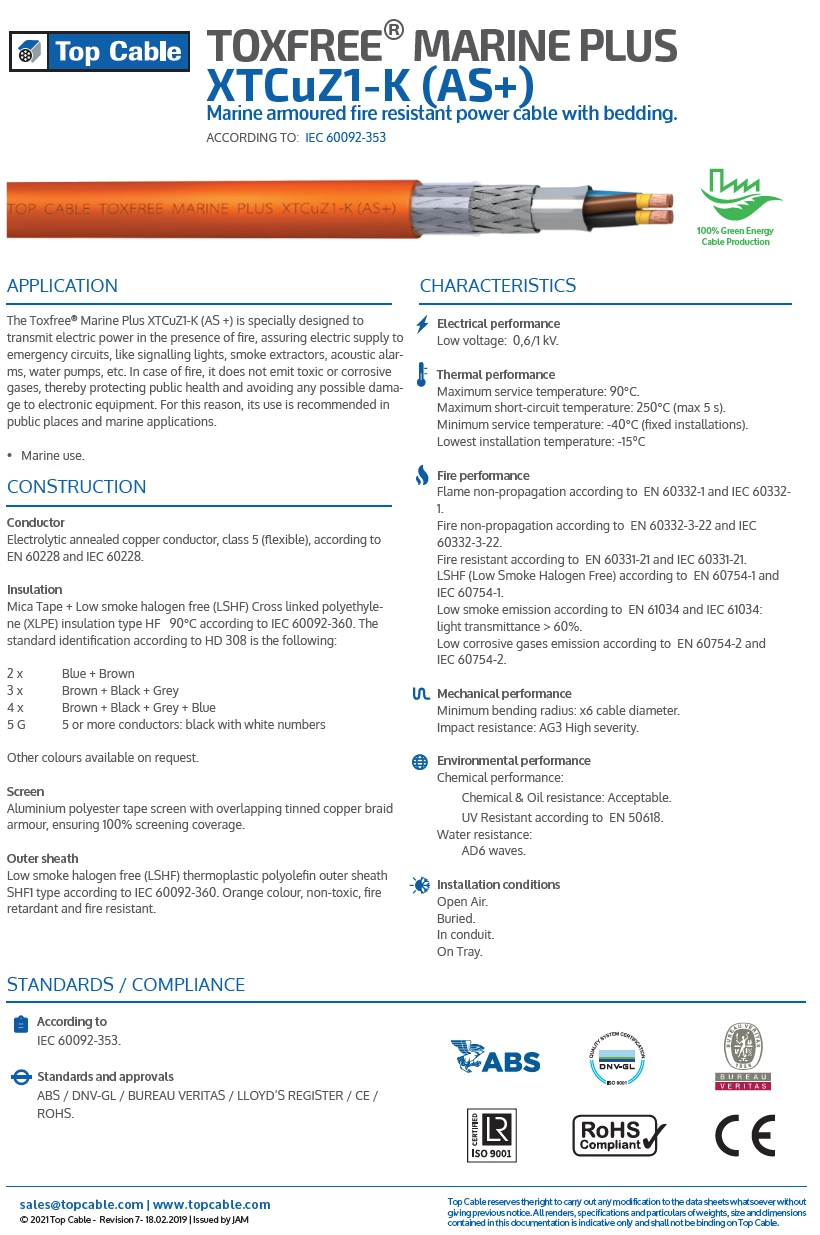

CHARACTERISTICS
Electrical performance
Low voltage: 0,6/1 kV.
Thermal performance
Maximum service temperature: 90°C.
Maximum short-circuit temperature: 250°C (max 5 s).
Minimum service temperature: -40°C (fixed installations).
Lowest installation temperature: -15ºC
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Fire non-propagation according to EN 60332-3-22 and IEC 60332-3-22.
Fire resistant according to EN 60331-21 and IEC 60331-21.
LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.
Low smoke emission according to EN 61034 and IEC 61034:
light transmittance > 60%.
Low corrosive gases emission according to EN 60754-2 and IEC 60754-2.
Mechanical performance
Minimum bending radius: x6 cable diameter.
Impact resistance: AG3 High severity.
Environmental performance
Chemical performance:
Chemical & Oil resistance: Acceptable.
UV Resistant according to EN 50618.
Water resistance:
AD6 waves.
Installation conditions
Open Air.
Buried.
In conduit.
On Tray.
Nhà nhập khẩu cáp điện Châu Âu UY TÍN - CHẤT LƯỢNG - ĐÓNG GÓI CHUYÊN NGHIỆP- GIAO HÀNG NHANH CHÓNG tại Việt Nam
CÔNG TY TNHH THƯƠNG MẠI VÀ XUẤT NHẬP KHẨU ĐÔNG NGUYÊN GIA
Tel : 028.62648106
Hotline : 0903624025 - 0909624025 ( Mr. Duy Đông)
Email: dongdng@dongnguyengia.com.vn
PHAN TRỌNG TUẤN (Mr) - 0908828979
Email: tuandng@dongnguyengia.com.vn
VŨ ĐÌNH HÀO KIỆT (Mr) - 0983778853
Email: kietdng@dongnguyengia.com.vn
HỒ THỊ CẦM (Mrs) - 0933467891
Email: camdng@dongnguyengia.com.vn
PHẠM ĐỨC MINH (Mr) - 0908899512
Email: minhdng@dongnguyengia.com.vn
NGUYỄN HỮU TOÀN THẮNG (Mr) - 0918508586
Email: thangdng@dongnguyengia.com.vn
CHARACTERISTICS
Electrical performance
Low voltage: 0,6/1 kV.
Thermal performance
Maximum service temperature: 90°C.
Maximum short-circuit temperature: 250°C (max 5 s).
Minimum service temperature: -40°C (fixed installations).
Lowest installation temperature: -15ºC
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Fire non-propagation according to EN 60332-3-22 and IEC 60332-3-22.
Fire resistant according to EN 60331-21 and IEC 60331-21.
LSHF (Low Smoke Halogen Free) according to EN 60754-1 and IEC 60754-1.
Low smoke emission according to EN 61034 and IEC 61034:
light transmittance > 60%.
Low corrosive gases emission according to EN 60754-2 and IEC 60754-2.
Mechanical performance
Minimum bending radius: x6 cable diameter.
Impact resistance: AG3 High severity.
Environmental performance
Chemical performance:
Chemical & Oil resistance: Acceptable.
UV Resistant according to EN 50618.
Water resistance:
AD6 waves.
Installation conditions
Open Air.
Buried.
In conduit.
On Tray.
