- Thương hiệu và xuất xứ:
+ GENERAL CAVI / XUẤT XỨ: ITALY
- Đơn hàng tối thiểu: 100m/cuộn
- Tình Trạng: Còn hàng - Kho ĐÔNG NGUYÊN GIA - QUẬN 10
- Giá bán: Liên hệ

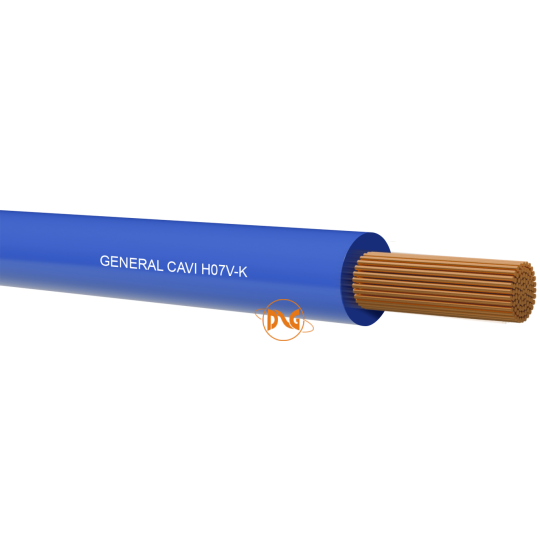

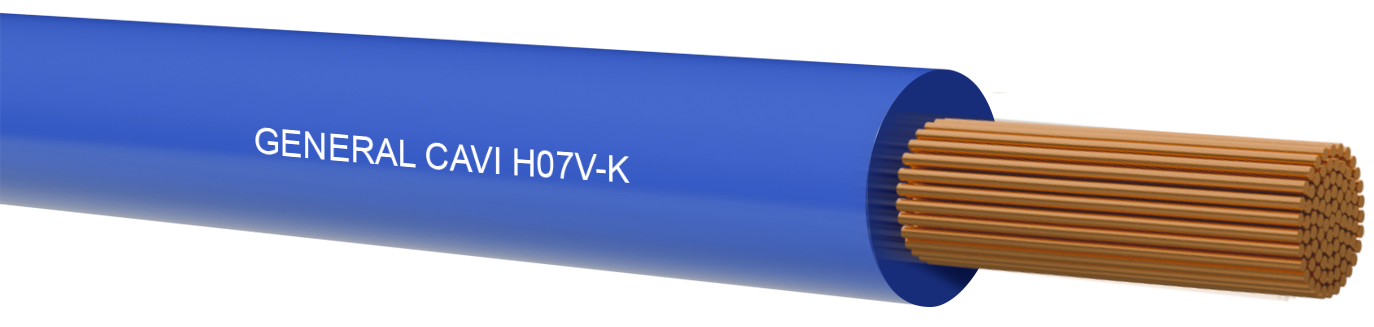

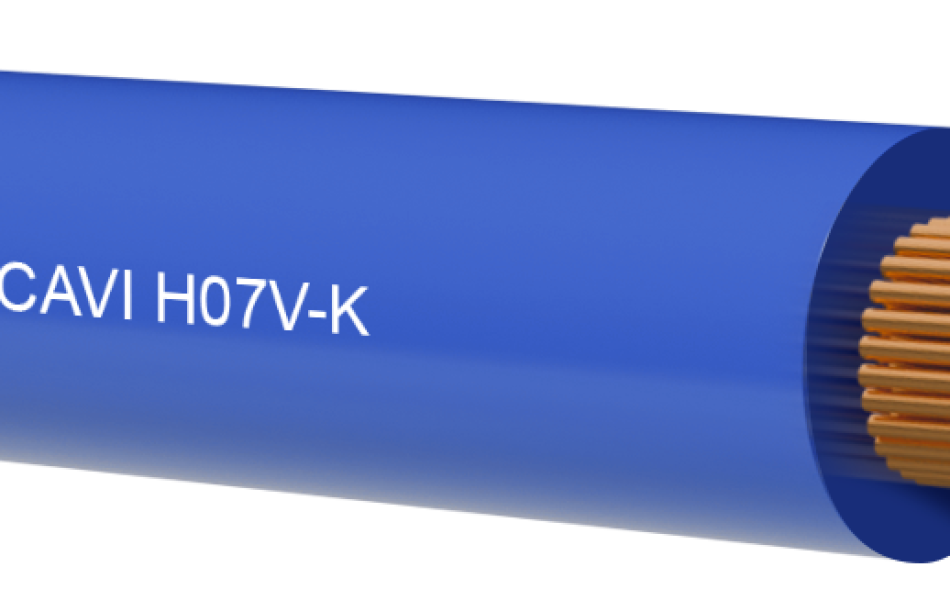

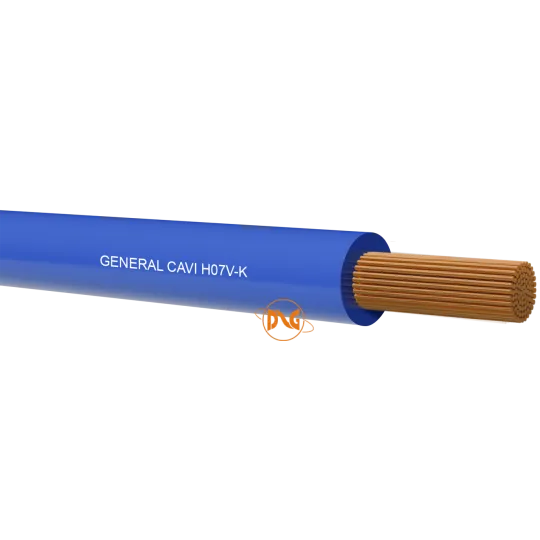

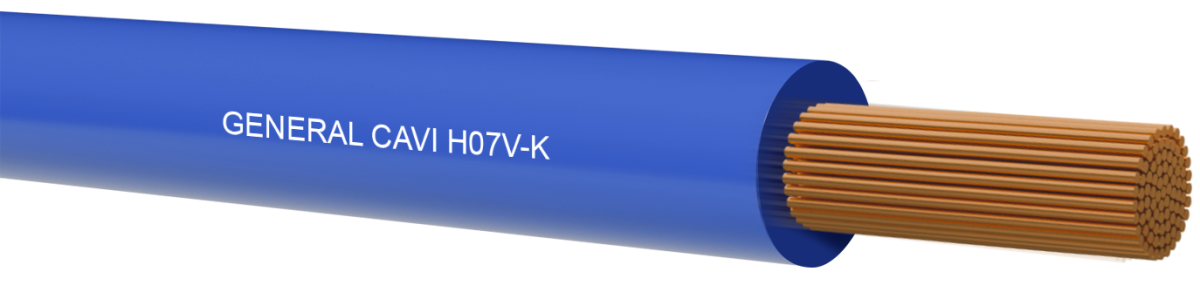

FLEXIBLE SINGLE CORE CABLES WITHOUT SHEATH FOR GENERAL PURPOSE
Flexible conductor bare or tinned copper, class 5.
PVC insulation in TI1 quality
STANDARDS
CEI EN 50525-2-31 CEI 20-20/3(CENELEC HD 21.3 S3), BS EN 50525-2-31 ,NF C 32-201-3 ,DIN VDE 0285-525-2-31 EN 50575:2014 + EN 50575/A1:2016(IEC 60332-1-2)(IEC 60227-3)
Accordingly to the standards BT 2014/35/UE- 2011/65/EU (RoHS 3)
Nominal voltage U0: 450 V
Nominal voltage U: 750 V
Test voltage: 2500 V
Maximun operating temperature: +70°C
Maximun short circuit temperature: +160°C
Minimum installation and laying temperature: +5°C
Min. operating temperature (without mechanical shocks): -10°C
Minimum installation and laying temperature: +5°C
COMMON FEATURES
It must be laid inside pipes at sight, embedded or closed systems. Allowed for fixed and protected installation, upon or into illumination sets for voltage up to 1000V AC or 750V DC to ground.Supply of electricity and communications in buildings and other civil engineering works with the objective of limiting the generation and spread of fire and smoke.
EMPLOYMENT
Minimum bending radius per D cable diameter (in mm):
Fixed lay:D<8≤3D D<12≤3D D>12≤4D
Curve near terminal:D<8≤2D D<12≤3D D>12≤4D
Maximum pulling stress: 50 N/mm2
CORE COLOURS
Single core: Black, light blue, brown, grey, orange, pink, red, touquoise, violet, white, Y/G.
MARKING ENGRAVING
GENERAL CAVI - IEMMEQU
NOTE
Maximum storage temperature: +40°C.
Constructive references as applicable to the IEC 60227
PACKING
100mt. rings in thermoplastic film or cardboard packagings
Nominal voltage U0: 450 V
Nominal voltage U: 750 V
Test voltage: 2500 V
Maximun operating temperature: +70°C
Maximun short circuit temperature: +160°C
Minimum installation and laying temperature: +5°C
Min. operating temperature (without mechanical shocks): -10°C
Minimum installation and laying temperature: +5°C
EMPLOYMENT
Minimum bending radius per D cable diameter (in mm):
Fixed lay:D<8≤3D D<12≤3D D>12≤4D
Curve near terminal:D<8≤2D D<12≤3D D>12≤4D
Maximum pulling stress: 50 N/mm2
CORE COLOURS
Single core: Black, light blue, brown, grey, orange, pink, red, touquoise, violet, white, Y/G.
NOTE
Maximum storage temperature: +40°C.
Constructive references as applicable to the IEC 60227
Nhà nhập khẩu cáp điện Châu Âu UY TÍN - CHẤT LƯỢNG - ĐÓNG GÓI CHUYÊN NGHIỆP- GIAO HÀNG NHANH CHÓNG tại Việt Nam
CÔNG TY TNHH THƯƠNG MẠI VÀ XUẤT NHẬP KHẨU ĐÔNG NGUYÊN GIA
Tel : 028.62648106
Hotline : 0903624025 - 0909624025 ( Mr. Duy Đông)
Email: dongdng@dongnguyengia.com.vn
PHAN TRỌNG TUẤN (Mr) - 0908828979
Email: tuandng@dongnguyengia.com.vn
VŨ ĐÌNH HÀO KIỆT (Mr) - 0983778853
Email: kietdng@dongnguyengia.com.vn
HỒ THỊ CẦM (Mrs) - 0933467891
Email: camdng@dongnguyengia.com.vn
PHẠM ĐỨC MINH (Mr) - 0908899512
Email: minhdng@dongnguyengia.com.vn
NGUYỄN HỮU TOÀN THẮNG (Mr) - 0918508586
Email: thangdng@dongnguyengia.com.vn
Nominal voltage U0: 450 V
Nominal voltage U: 750 V
Test voltage: 2500 V
Maximun operating temperature: +70°C
Maximun short circuit temperature: +160°C
Minimum installation and laying temperature: +5°C
Min. operating temperature (without mechanical shocks): -10°C
Minimum installation and laying temperature: +5°C
EMPLOYMENT
Minimum bending radius per D cable diameter (in mm):
Fixed lay:D<8≤3D D<12≤3D D>12≤4D
Curve near terminal:D<8≤2D D<12≤3D D>12≤4D
Maximum pulling stress: 50 N/mm2
CORE COLOURS
Single core: Black, light blue, brown, grey, orange, pink, red, touquoise, violet, white, Y/G.
NOTE
Maximum storage temperature: +40°C.
Constructive references as applicable to the IEC 60227
FLEXIBLE SINGLE CORE CABLES WITHOUT SHEATH FOR GENERAL PURPOSE
Flexible conductor bare or tinned copper, class 5.
PVC insulation in TI1 quality
STANDARDS
CEI EN 50525-2-31 CEI 20-20/3(CENELEC HD 21.3 S3), BS EN 50525-2-31 ,NF C 32-201-3 ,DIN VDE 0285-525-2-31 EN 50575:2014 + EN 50575/A1:2016(IEC 60332-1-2)(IEC 60227-3)
Accordingly to the standards BT 2014/35/UE- 2011/65/EU (RoHS 3)
Nominal voltage U0: 450 V
Nominal voltage U: 750 V
Test voltage: 2500 V
Maximun operating temperature: +70°C
Maximun short circuit temperature: +160°C
Minimum installation and laying temperature: +5°C
Min. operating temperature (without mechanical shocks): -10°C
Minimum installation and laying temperature: +5°C
COMMON FEATURES
It must be laid inside pipes at sight, embedded or closed systems. Allowed for fixed and protected installation, upon or into illumination sets for voltage up to 1000V AC or 750V DC to ground.Supply of electricity and communications in buildings and other civil engineering works with the objective of limiting the generation and spread of fire and smoke.
EMPLOYMENT
Minimum bending radius per D cable diameter (in mm):
Fixed lay:D<8≤3D D<12≤3D D>12≤4D
Curve near terminal:D<8≤2D D<12≤3D D>12≤4D
Maximum pulling stress: 50 N/mm2
CORE COLOURS
Single core: Black, light blue, brown, grey, orange, pink, red, touquoise, violet, white, Y/G.
MARKING ENGRAVING
GENERAL CAVI - IEMMEQU
NOTE
Maximum storage temperature: +40°C.
Constructive references as applicable to the IEC 60227
PACKING
100mt. rings in thermoplastic film or cardboard packagings
