- Thương hiệu và xuất xứ:
+ LA TRIVENETA CAVI- LTC / XUẤT XỨ: ITALY
- Đơn hàng tối thiểu: 100m/cuộn
- Tình Trạng: Còn hàng - Kho ĐÔNG NGUYÊN GIA - QUẬN 10
- Giá bán: Liên hệ
Structure and electrical, physical, mechanical requirements:
EN 50525-2-31 (IEC 60227-3)
Low Voltage Directive: 2014/35/EU
RoHS Directive: 2011/65/EU
REACTION TO FIRE
Standard: EN 50575:2014+A1:2016
Class : Eca
Classification: EN 13501-6
Flame propagation: EN 60332-1-2
Notified Body: 0051 - IMQ
CE : 2016
Description

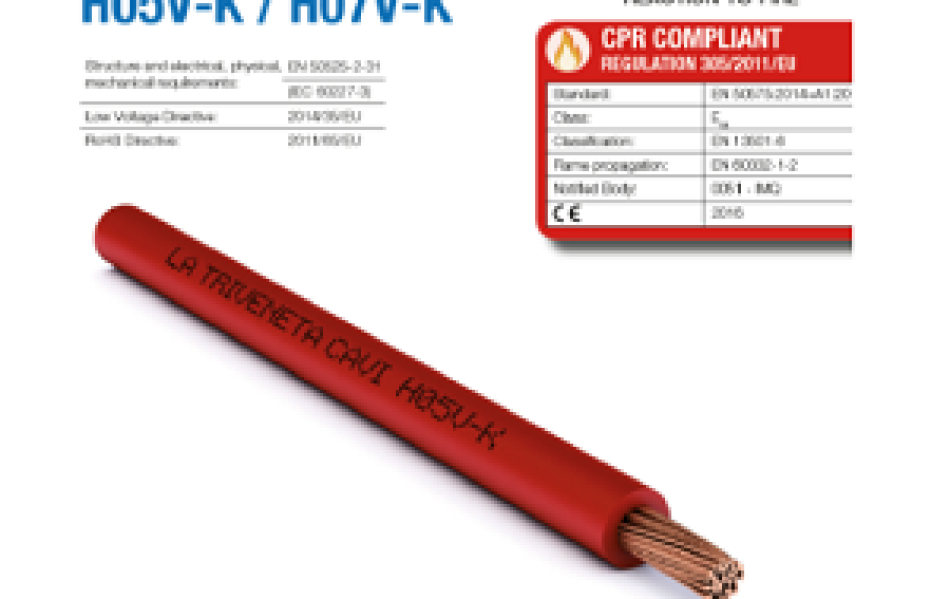

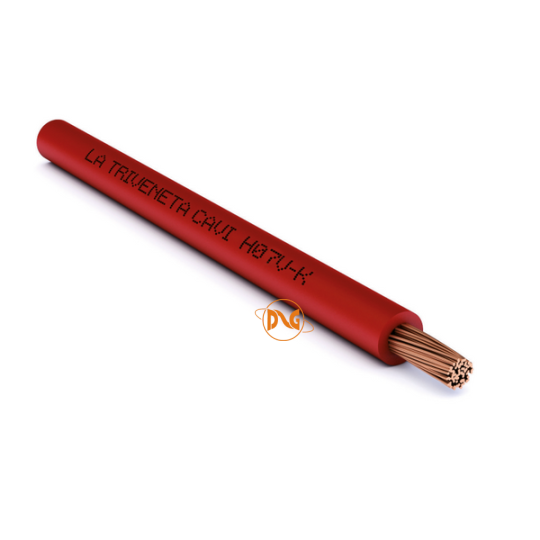

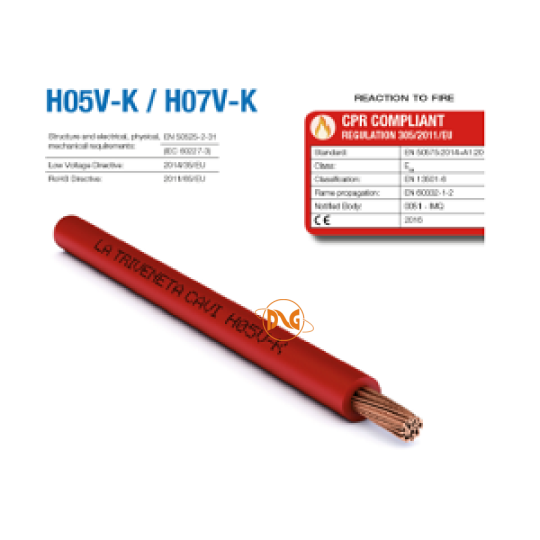

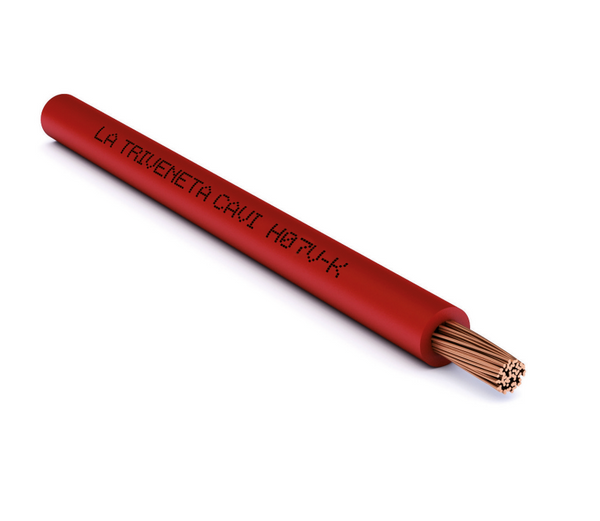

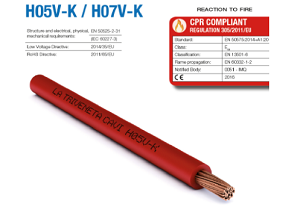

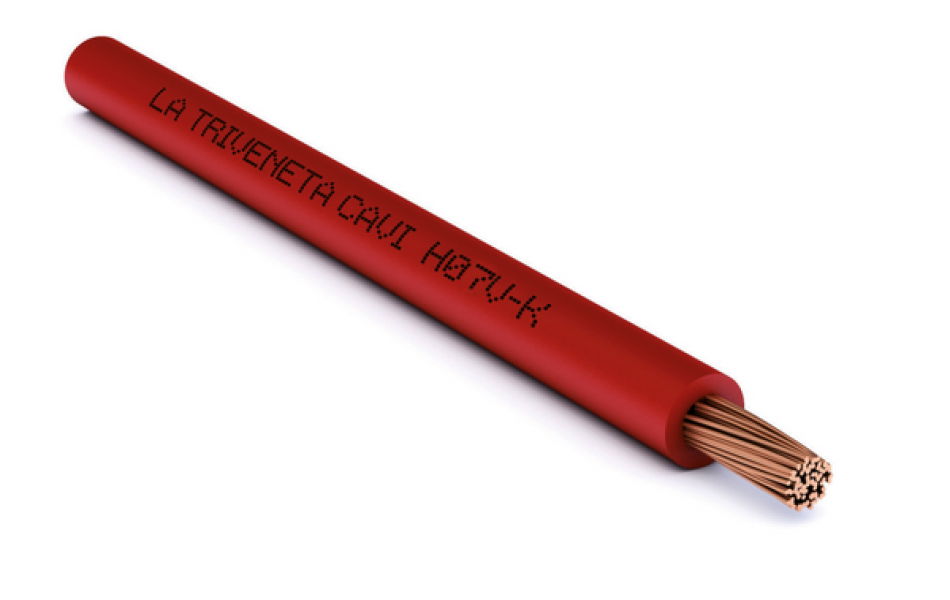

• Conductor: class 5, flexible, plain copper wire
• Insulation: PVC, TI1 quality
• Colour:
- H05V-K: black, blue, brown, grey, orange, pink, red, light blue, violet, white, yellow, green, green/yellow. As two-colour: any combination
- H07V-K: black, blue, brown, grey, orange, pink, red, light blue, violet, white, green/yellow.
Functional characteristics
• Rated voltage
H05V-K: Uo/U 300/500 V
H07V-K: Uo/U 450/750 V
• Max. operating temperature: 70°C
• Min. operating temperature: -10°C
(without mechanical shocks)
• Max. short circuit temperature: 160°C
Installation conditions
• Minimum installation temperature: 5°C
• Recommended minimum bending radius: 4 times the cable diameter
• Recommended maximum tensile stress: 50 N/mm² of the cross-section of the copper
Special features
Good sliding properties in pipes, good abrasion resistance, easy stripping.
Marking
H05V-K [company] IEMMEQU ◄HAR► [year] H07V-K [company] IEMMEQU ◄HAR► [year]
Use and installation method
Reference Guide EN 50565
H05V-K: for fixed laying in above-ground or built-in pipes only if used for signalling or control circuits. Contact with water is not permitted.
H07V-K: for fixed laying in above-ground or built-in pipes or in similar closed systems. Cable suitable for protected installation in lighting and control appliances for voltage up to 1000V in c.a. or up to 750 V in c.c. landward. Contact with water is not permitted.
Reference Construction Products Regulation 305/2011 EU and Standard EN 50575:
The cable is suitable for the supply of electricity in buildings and other civil engineering works.
Structure and electrical, physical, mechanical requirements:
EN 50525-2-31 (IEC 60227-3)
Low Voltage Directive: 2014/35/EU
RoHS Directive: 2011/65/EU
REACTION TO FIRE
Standard: EN 50575:2014+A1:2016
Class : Eca
Classification: EN 13501-6
Flame propagation: EN 60332-1-2
Notified Body: 0051 - IMQ
CE : 2016
Functional characteristics
• Rated voltage
H05V-K: Uo/U 300/500 V
H07V-K: Uo/U 450/750 V
• Max. operating temperature: 70°C
• Min. operating temperature: -10°C
(without mechanical shocks)
• Max. short circuit temperature: 160°C
Installation conditions
• Minimum installation temperature: 5°C
• Recommended minimum bending radius: 4 times the cable diameter
• Recommended maximum tensile stress: 50 N/mm² of the cross-section of the copper
Marking
H05V-K [company] IEMMEQU ◄HAR► [year] H07V-K [company] IEMMEQU ◄HAR► [year]
