- Thương hiệu và xuất xứ:
+ ICEL / XUẤT XỨ: ITALY
- Đơn hàng tối thiểu: 100m/cuộn
- Tình Trạng: Còn hàng - Kho ĐÔNG NGUYÊN GIA - QUẬN 10
- Giá bán: Liên hệ

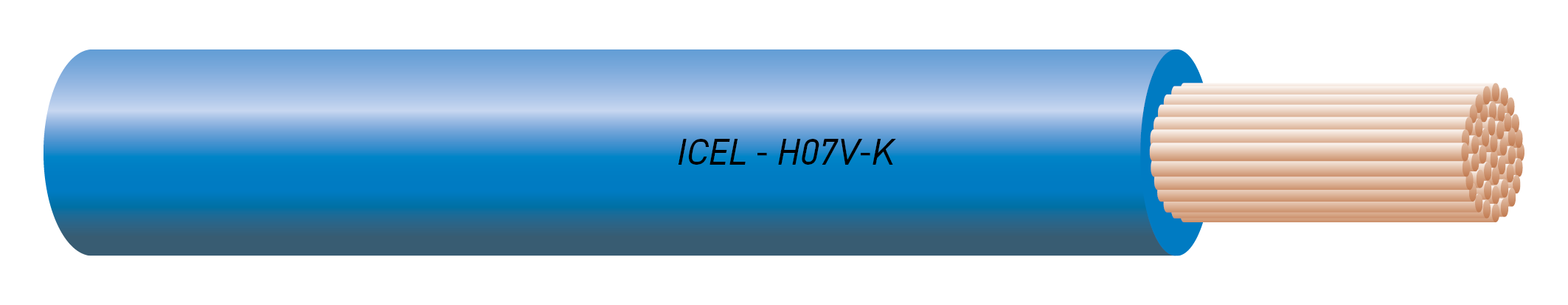

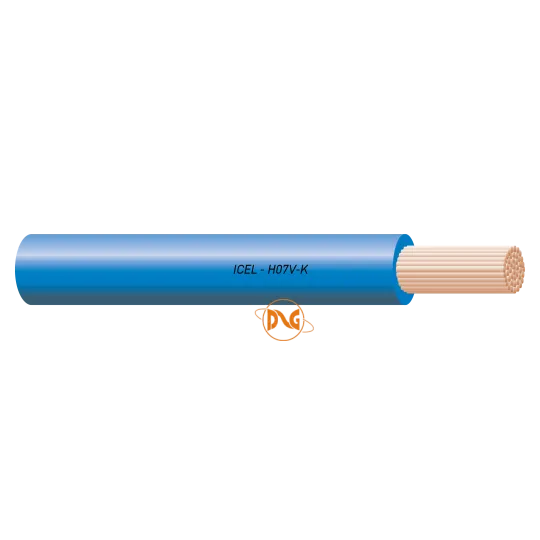

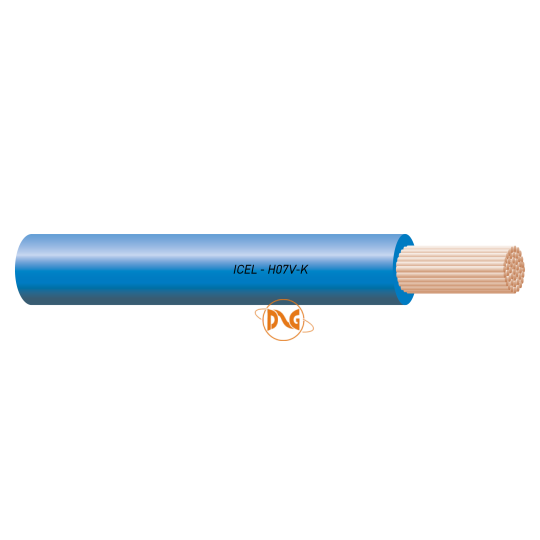

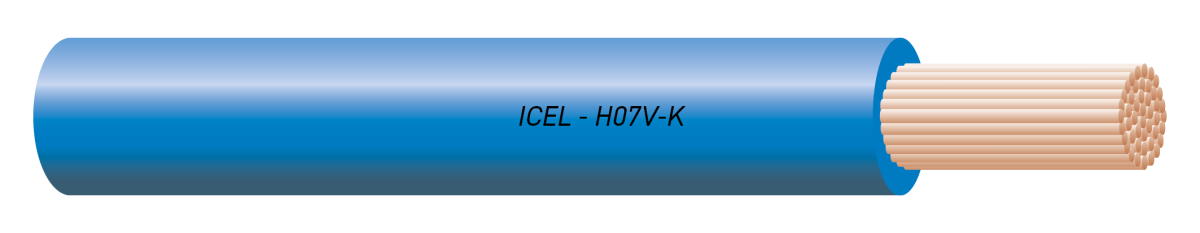

Single core non-sheathed power cable with flexible conductor for general use.
GUIDANCE FOR USE__________________________________
Installation in surface mounted or embedded conduits, or similar closed systems; suitable for fixed protected installation in, or on, lighting or control gear for voltages up to 1000 V a.c. or, up to 750 V d.c. to earth.
Not suitable for: direct or indirect burial, laying outdoors or in wet environments, unprotected laying, or laying under plaster.
Further instructions and guidance for use are given in the EN 50565 standard.
CONSTRUCTION FEATURES____________________________
CONDUCTOR
Flexible annealed plain copper, class 5.
CEI EN/IEC 60228.
INSULATION
PVC type TI1.
INSULATION COLOUR
Blue, dark blue, light blue, black, brown, grey, green/yellow, red, white, turquoise, violet, orange, pink.

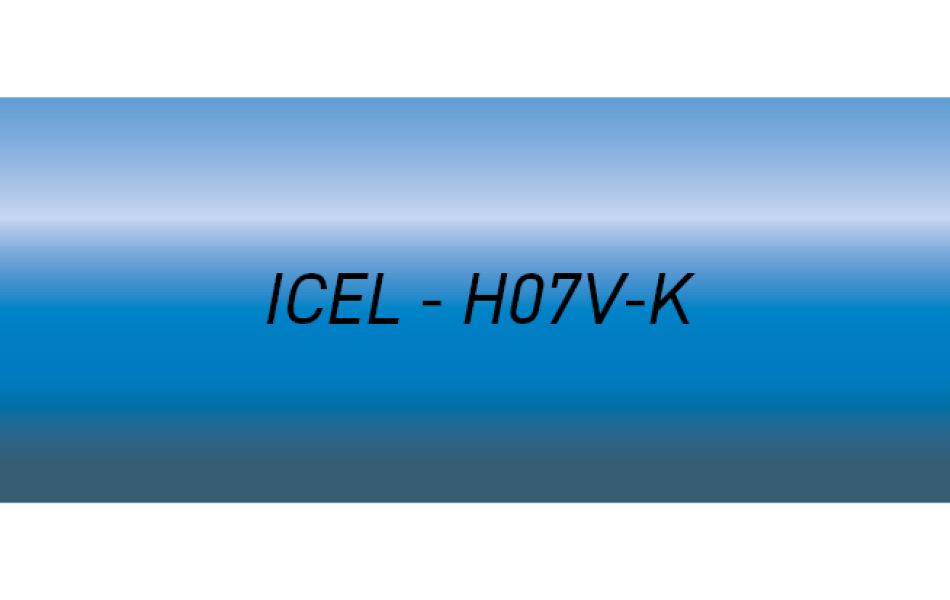

MARKING EXAMPLE
Continuous marking on the insulation:
1° Side <
2° Lato <
PROPERTIES
NOMINALE RATED VOLTAGE
Uo/U 450/750 V
MAX. OPERATING TEMPERATURE ON THE CONDUCTOR : 70oC
Flame retardant : CEI EN/IEC 60332-1-2
MAX. SHORT CIRCUIT TEMPERATURE : 160oC
MIN. INSTALLATION TEMPERATURE : +5oC
TENSILE LOAD : 1.5 Kg/mm2
MIN. OPERATING TEMPERATURE : -10oC
MIN. BENDING RADIUS: 4 ÷ 6 x Ø.
NORMATIVE/STANDARDS__________________________________________________________________________________
CEI EN 50525-1; CEI EN 50525-2-31; CEI 20-107-1; CEI 20-107-2-31; CEI EN/IEC 60228; CEI EN/IEC 60332-1-2; CEI EN 50575:2014+A1:201
REGOLAMENTO PRODOTTI DA COSTRUZIONI/CONSTRUCTION PRODUCTS REGULATION
305/2011 EU.
DIRETTIVE EUROPEE/EUROPEAN DIRECTIVES
2014/35/UE (B.T.) - 2011/65/CE ; 2015/863/UE(RoHS).
PROPERTIES
NOMINALE RATED VOLTAGE
Uo/U 450/750 V
MAX. OPERATING TEMPERATURE ON THE CONDUCTOR : 70oC
Flame retardant : CEI EN/IEC 60332-1-2
MAX. SHORT CIRCUIT TEMPERATURE : 160oC
MIN. INSTALLATION TEMPERATURE : +5oC
TENSILE LOAD : 1.5 Kg/mm2
MIN. OPERATING TEMPERATURE : -10oC
MIN. BENDING RADIUS: 4 ÷ 6 x Ø.
NORMATIVE/STANDARDS__________________________________________________________________________________
CEI EN 50525-1; CEI EN 50525-2-31; CEI 20-107-1; CEI 20-107-2-31; CEI EN/IEC 60228; CEI EN/IEC 60332-1-2; CEI EN 50575:2014+A1:201
REGOLAMENTO PRODOTTI DA COSTRUZIONI/CONSTRUCTION PRODUCTS REGULATION
305/2011 EU.
DIRETTIVE EUROPEE/EUROPEAN DIRECTIVES
2014/35/UE (B.T.) - 2011/65/CE ; 2015/863/UE(RoHS).
Nhà nhập khẩu cáp điện Châu Âu UY TÍN - CHẤT LƯỢNG - ĐÓNG GÓI CHUYÊN NGHIỆP- GIAO HÀNG NHANH CHÓNG tại Việt Nam
CÔNG TY TNHH THƯƠNG MẠI VÀ XUẤT NHẬP KHẨU ĐÔNG NGUYÊN GIA
Tel : 028.62648106
Hotline : 0903624025 - 0909624025 ( Mr. Duy Đông)
Email: dongdng@dongnguyengia.com.vn
PHAN TRỌNG TUẤN (Mr) - 0908828979
Email: tuandng@dongnguyengia.com.vn
VŨ ĐÌNH HÀO KIỆT (Mr) - 0983778853
Email: kietdng@dongnguyengia.com.vn
HỒ THỊ CẦM (Mrs) - 0933467891
Email: camdng@dongnguyengia.com.vn
PHẠM ĐỨC MINH (Mr) - 0908899512
Email: minhdng@dongnguyengia.com.vn
NGUYỄN HỮU TOÀN THẮNG (Mr) - 0918508586
Email: thangdng@dongnguyengia.com.vn
PROPERTIES
NOMINALE RATED VOLTAGE
Uo/U 450/750 V
MAX. OPERATING TEMPERATURE ON THE CONDUCTOR : 70oC
Flame retardant : CEI EN/IEC 60332-1-2
MAX. SHORT CIRCUIT TEMPERATURE : 160oC
MIN. INSTALLATION TEMPERATURE : +5oC
TENSILE LOAD : 1.5 Kg/mm2
MIN. OPERATING TEMPERATURE : -10oC
MIN. BENDING RADIUS: 4 ÷ 6 x Ø.
NORMATIVE/STANDARDS__________________________________________________________________________________
CEI EN 50525-1; CEI EN 50525-2-31; CEI 20-107-1; CEI 20-107-2-31; CEI EN/IEC 60228; CEI EN/IEC 60332-1-2; CEI EN 50575:2014+A1:201
REGOLAMENTO PRODOTTI DA COSTRUZIONI/CONSTRUCTION PRODUCTS REGULATION
305/2011 EU.
DIRETTIVE EUROPEE/EUROPEAN DIRECTIVES
2014/35/UE (B.T.) - 2011/65/CE ; 2015/863/UE(RoHS).
Single core non-sheathed power cable with flexible conductor for general use.
GUIDANCE FOR USE__________________________________
Installation in surface mounted or embedded conduits, or similar closed systems; suitable for fixed protected installation in, or on, lighting or control gear for voltages up to 1000 V a.c. or, up to 750 V d.c. to earth.
Not suitable for: direct or indirect burial, laying outdoors or in wet environments, unprotected laying, or laying under plaster.
Further instructions and guidance for use are given in the EN 50565 standard.
CONSTRUCTION FEATURES____________________________
CONDUCTOR
Flexible annealed plain copper, class 5.
CEI EN/IEC 60228.
INSULATION
PVC type TI1.
INSULATION COLOUR
Blue, dark blue, light blue, black, brown, grey, green/yellow, red, white, turquoise, violet, orange, pink.
MARKING EXAMPLE
Continuous marking on the insulation:
1° Side <
2° Lato <
PROPERTIES
NOMINALE RATED VOLTAGE
Uo/U 450/750 V
MAX. OPERATING TEMPERATURE ON THE CONDUCTOR : 70oC
Flame retardant : CEI EN/IEC 60332-1-2
MAX. SHORT CIRCUIT TEMPERATURE : 160oC
MIN. INSTALLATION TEMPERATURE : +5oC
TENSILE LOAD : 1.5 Kg/mm2
MIN. OPERATING TEMPERATURE : -10oC
MIN. BENDING RADIUS: 4 ÷ 6 x Ø.
NORMATIVE/STANDARDS__________________________________________________________________________________
CEI EN 50525-1; CEI EN 50525-2-31; CEI 20-107-1; CEI 20-107-2-31; CEI EN/IEC 60228; CEI EN/IEC 60332-1-2; CEI EN 50575:2014+A1:201
REGOLAMENTO PRODOTTI DA COSTRUZIONI/CONSTRUCTION PRODUCTS REGULATION
305/2011 EU.
DIRETTIVE EUROPEE/EUROPEAN DIRECTIVES
2014/35/UE (B.T.) - 2011/65/CE ; 2015/863/UE(RoHS).
