- Thương hiệu và xuất xứ:

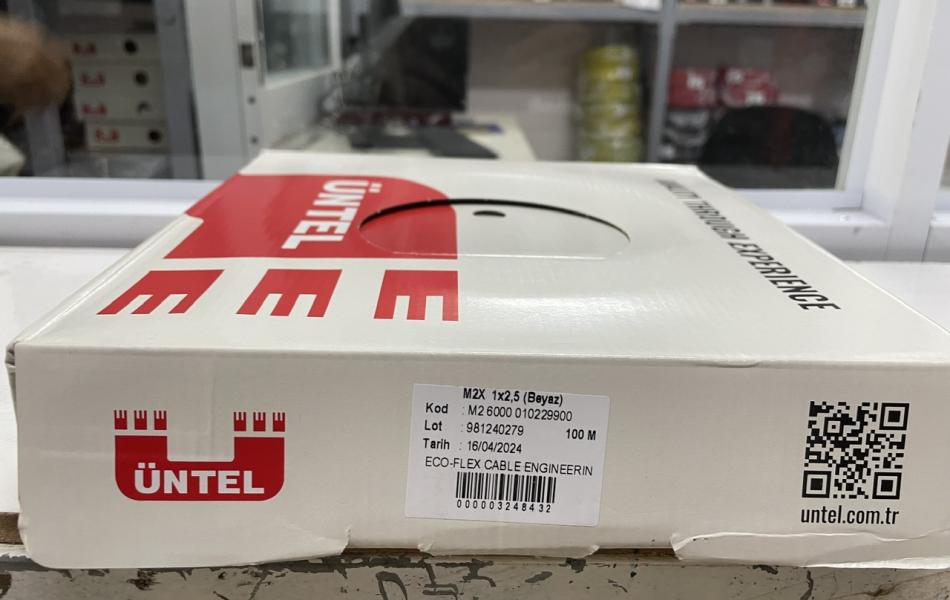

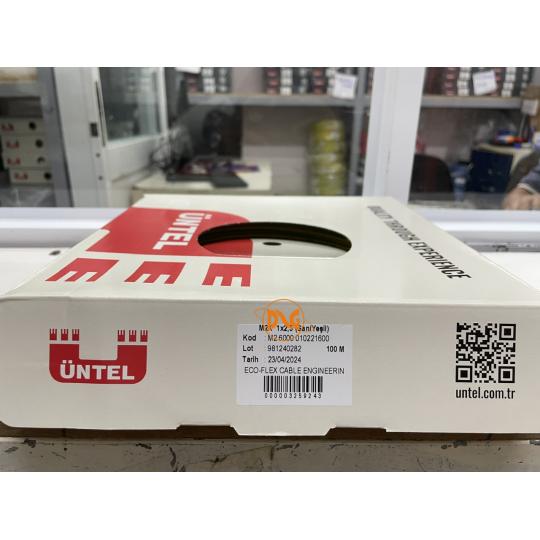

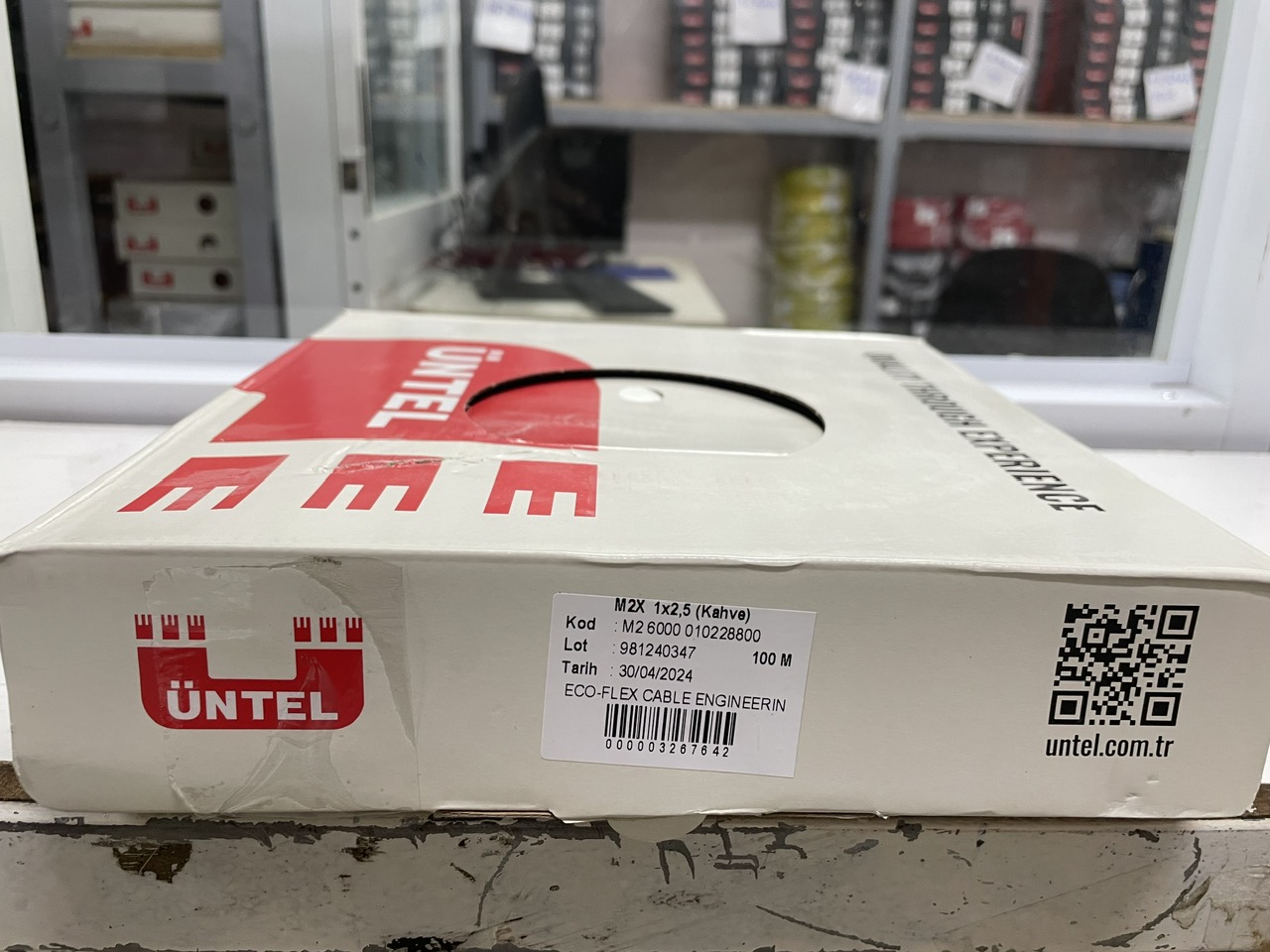

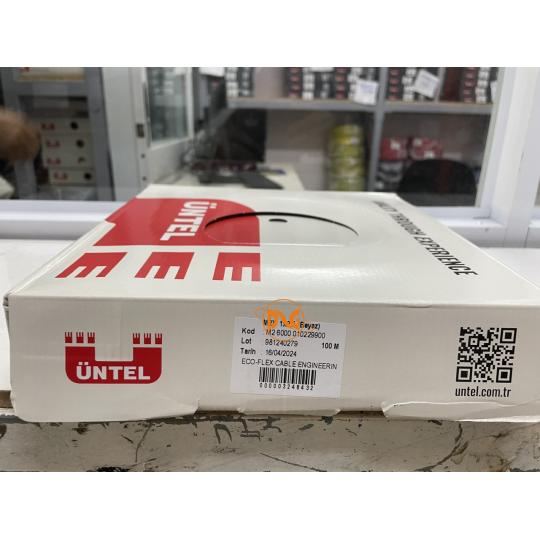

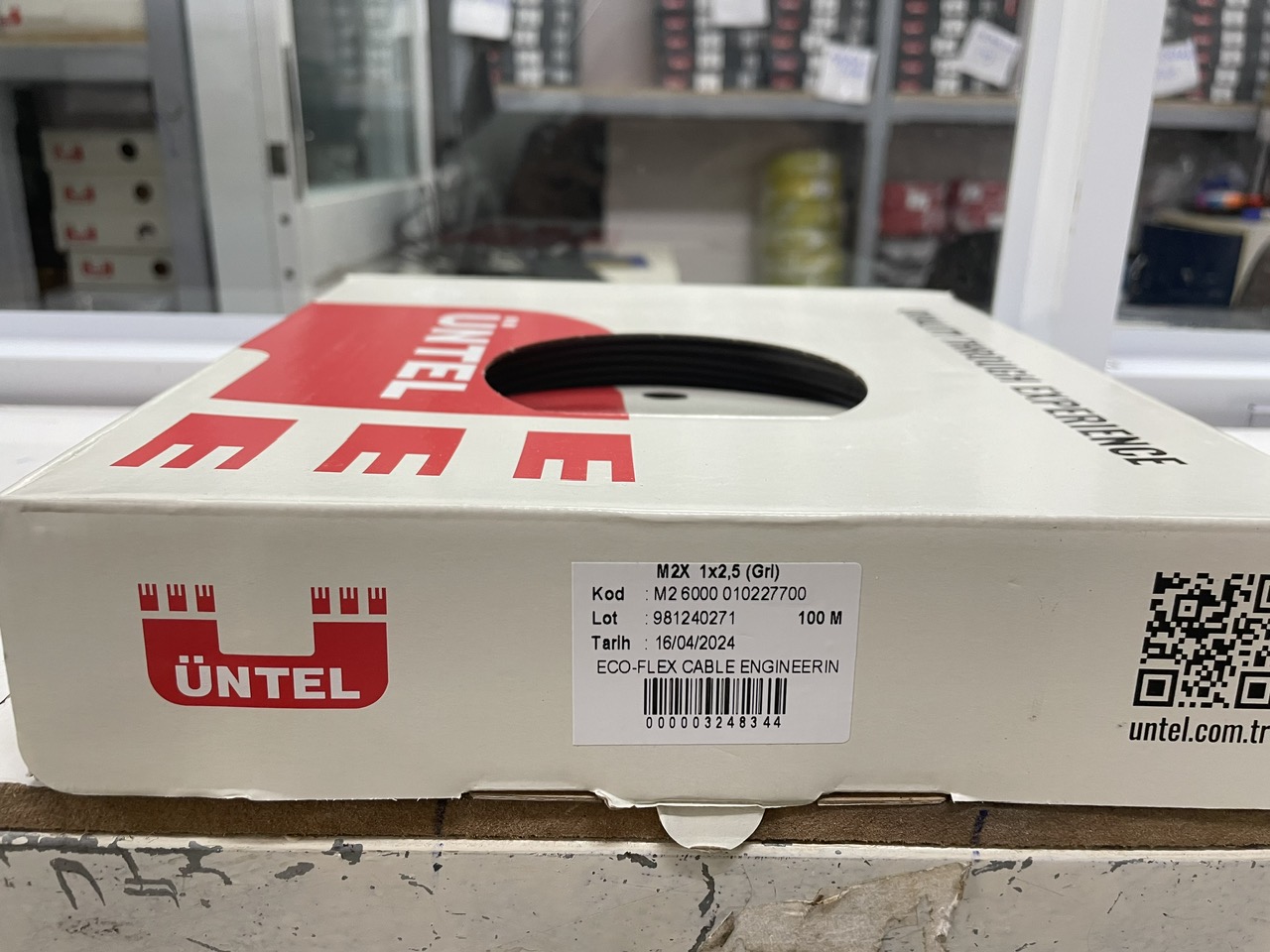

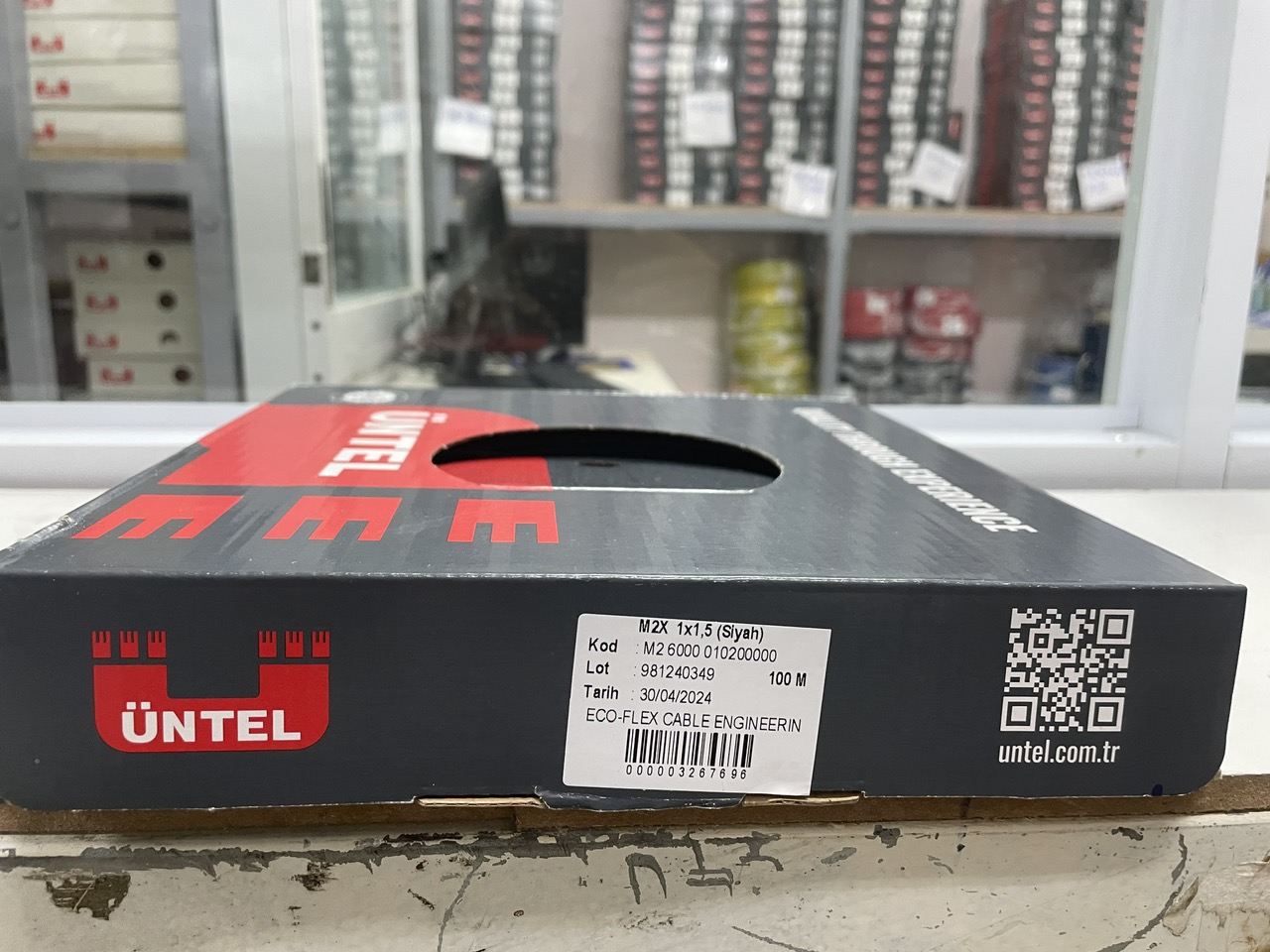

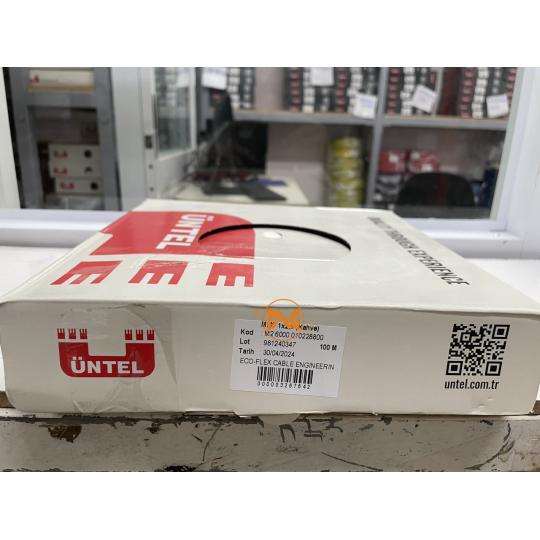

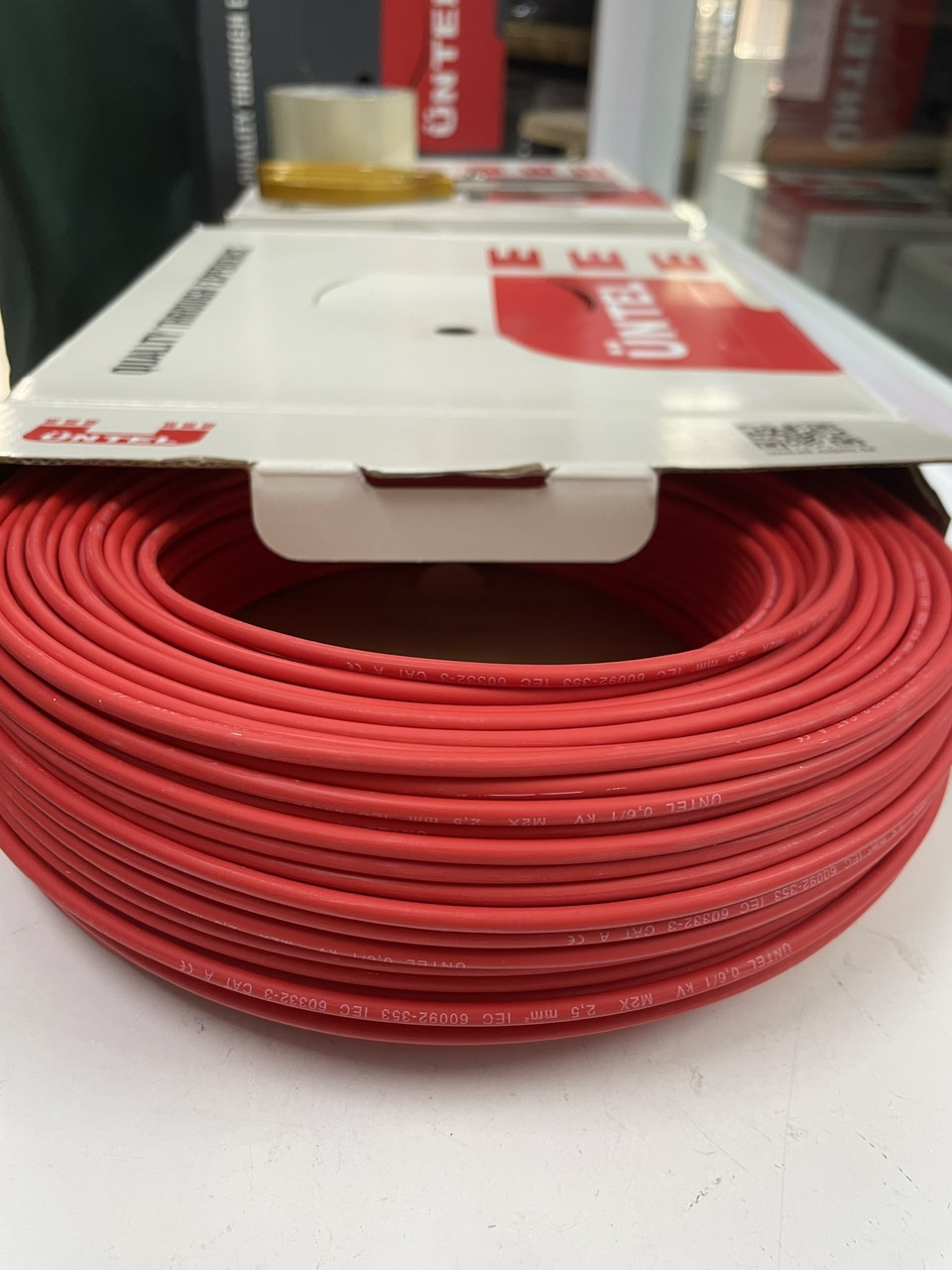

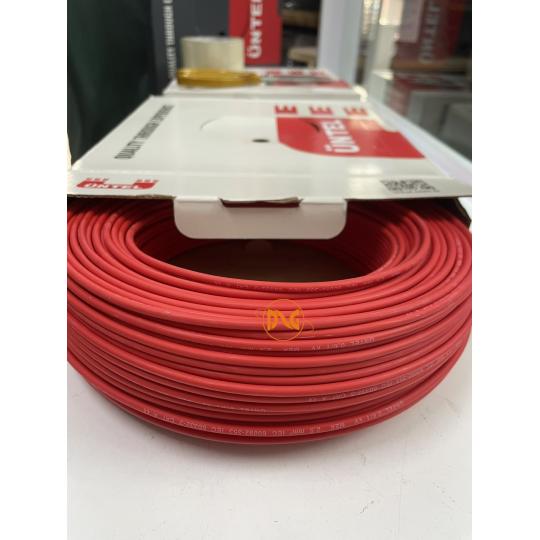

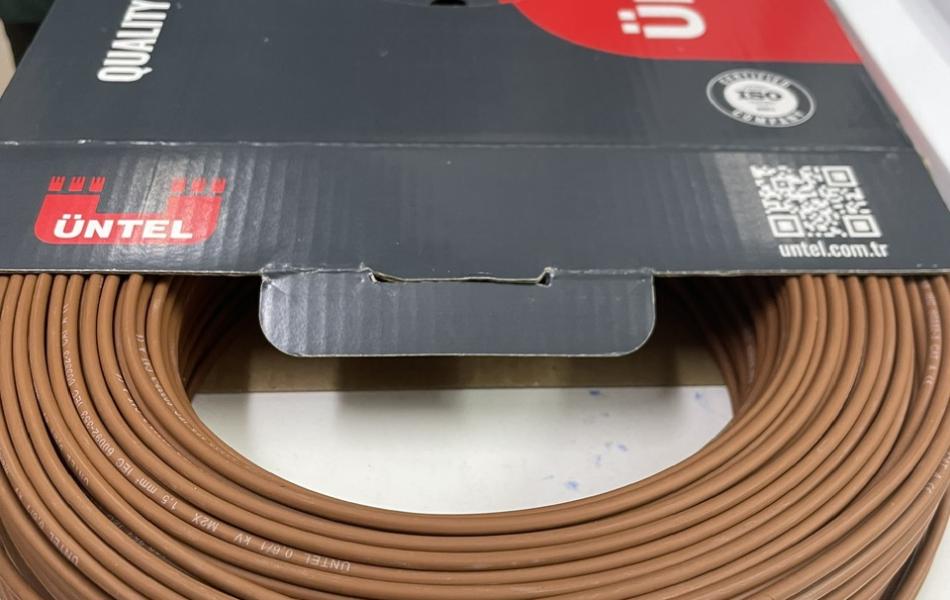

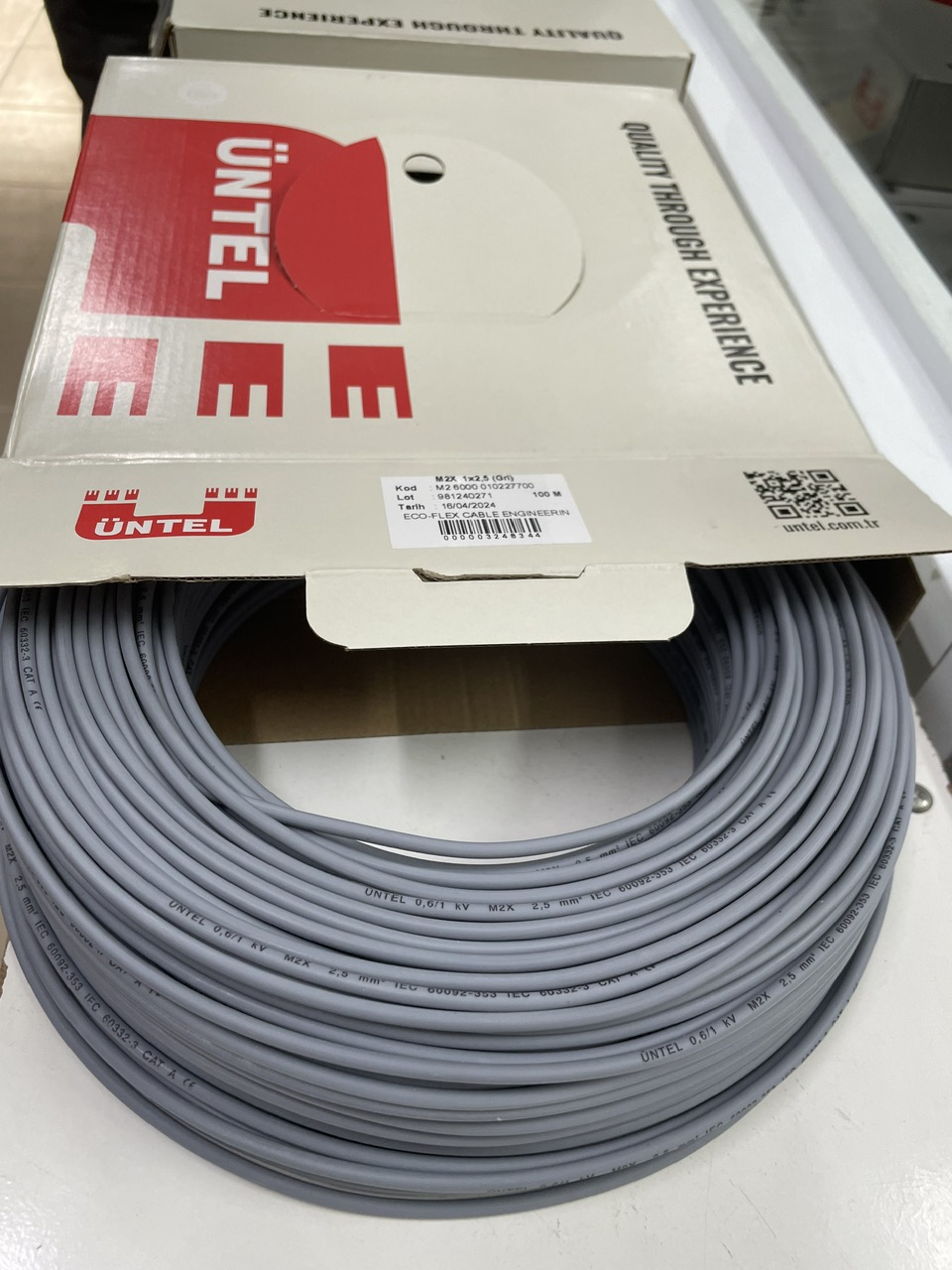

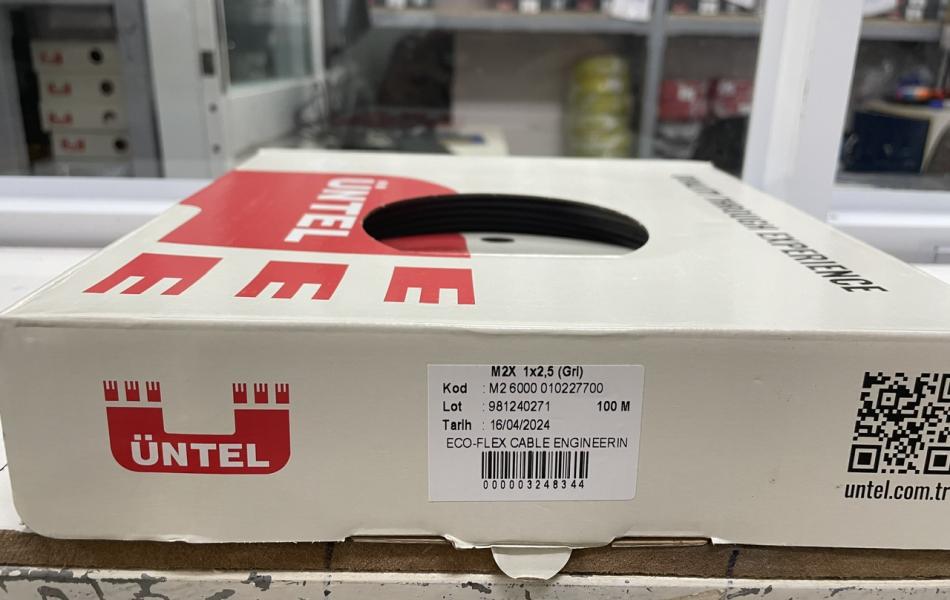

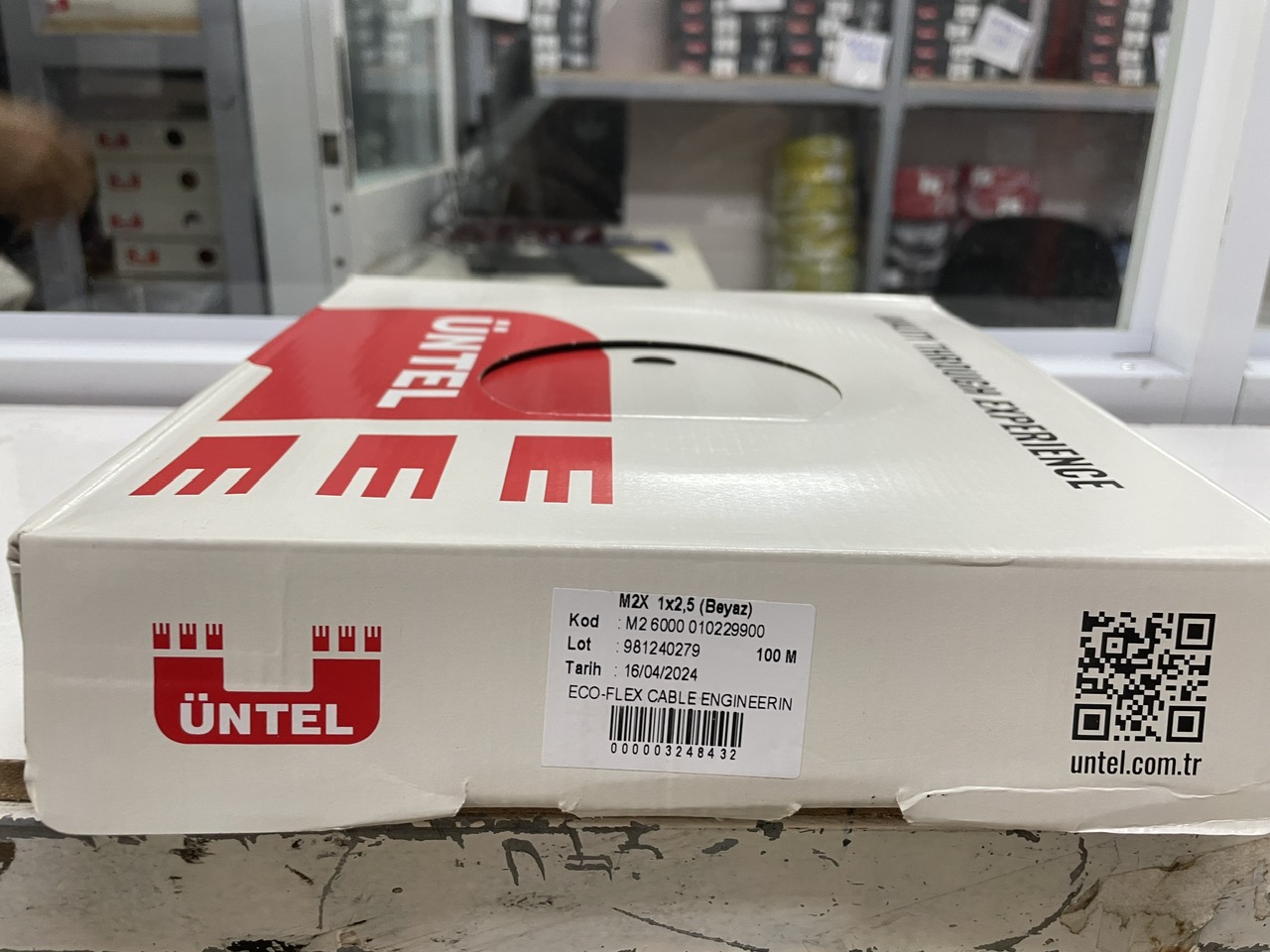

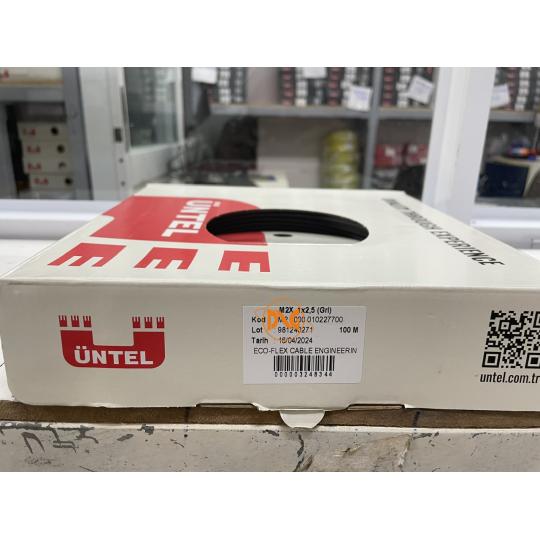

+ UNTEL KABLO / XUẤT XỨ: TURKEY

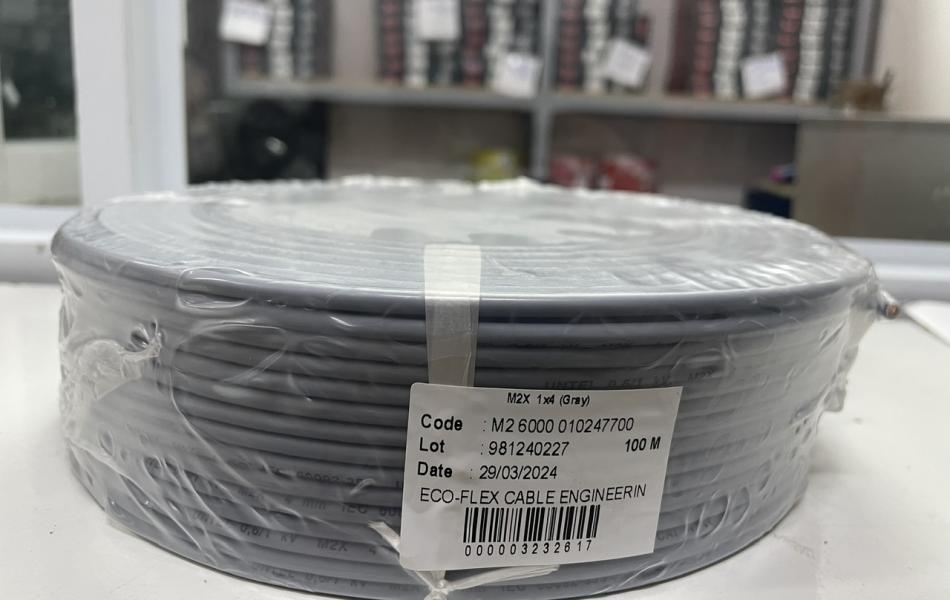

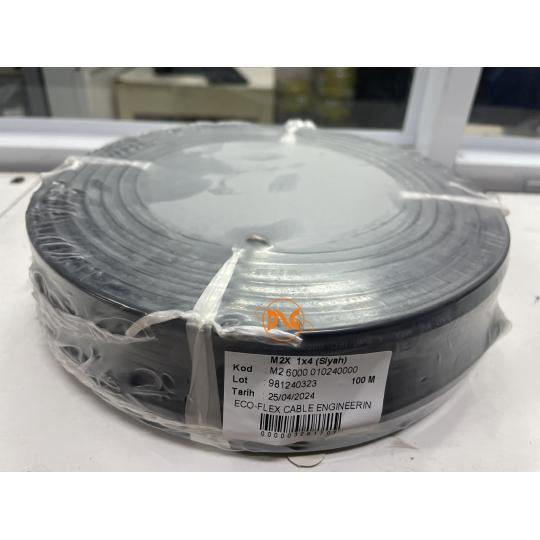

- Đơn hàng tối thiểu: 100m/cuộn
- Tình Trạng: Còn hàng - Kho ĐÔNG NGUYÊN GIA - QUẬN 10
- Giá bán: Liên hệ

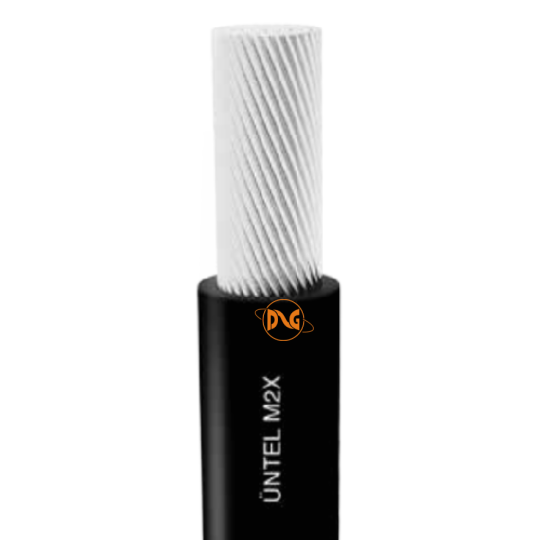

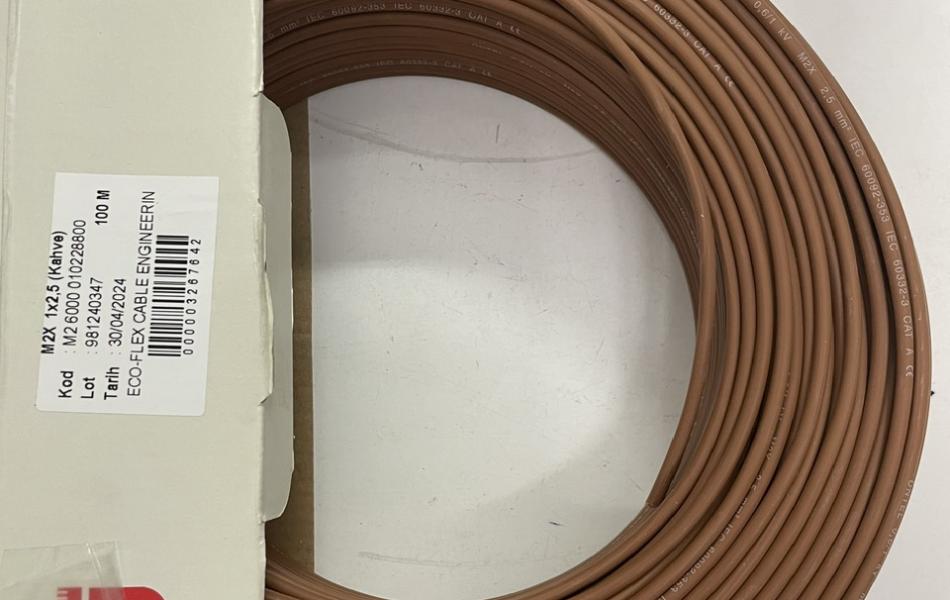

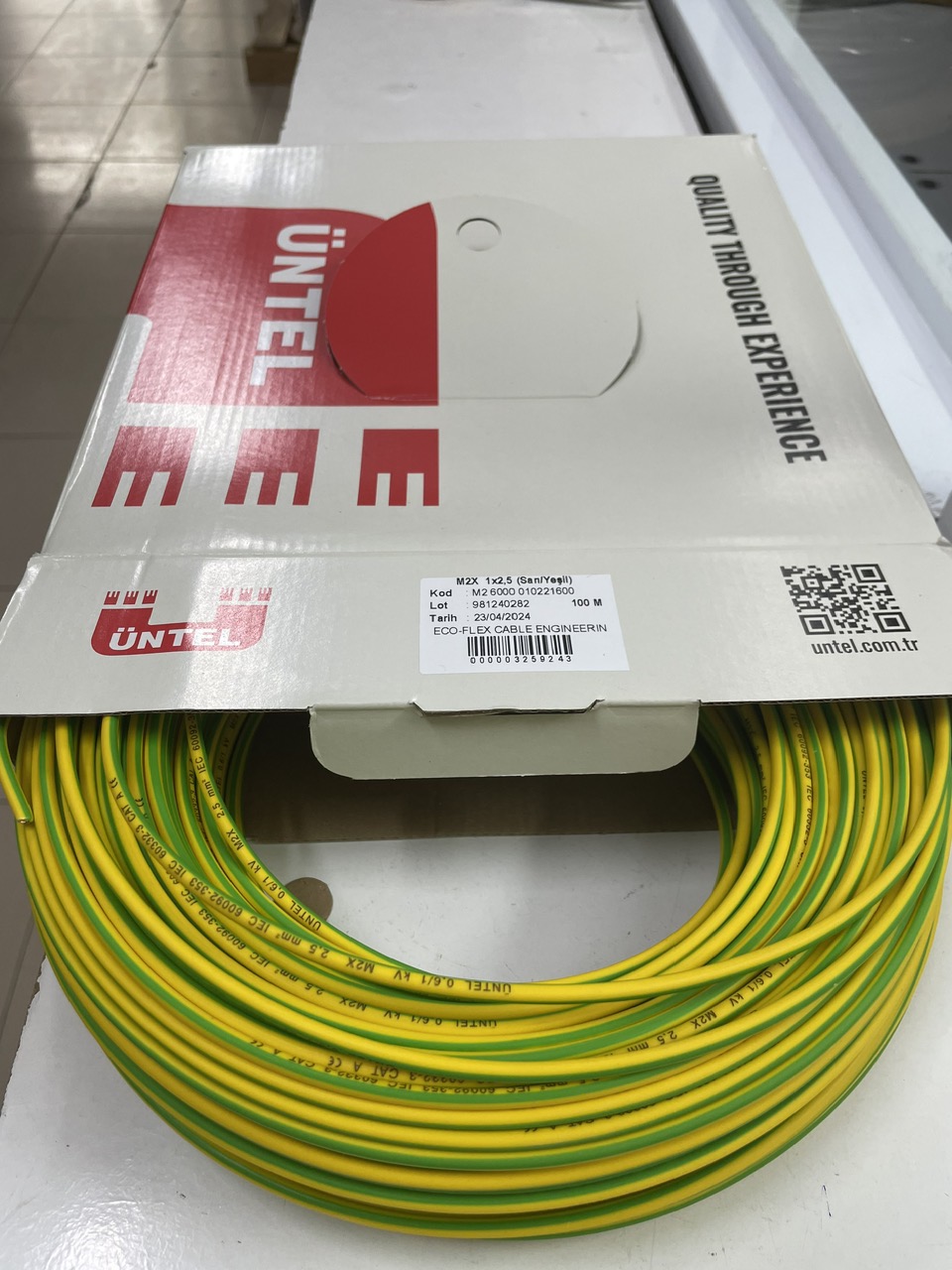

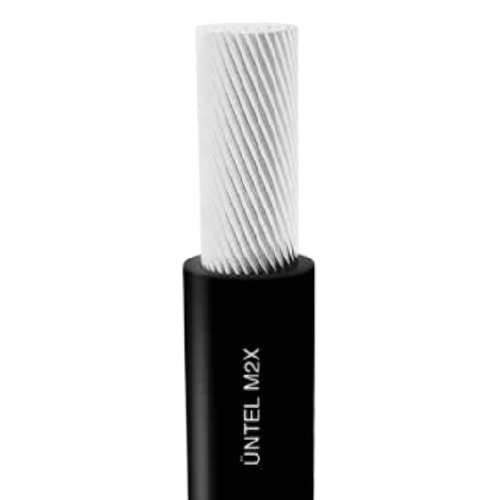

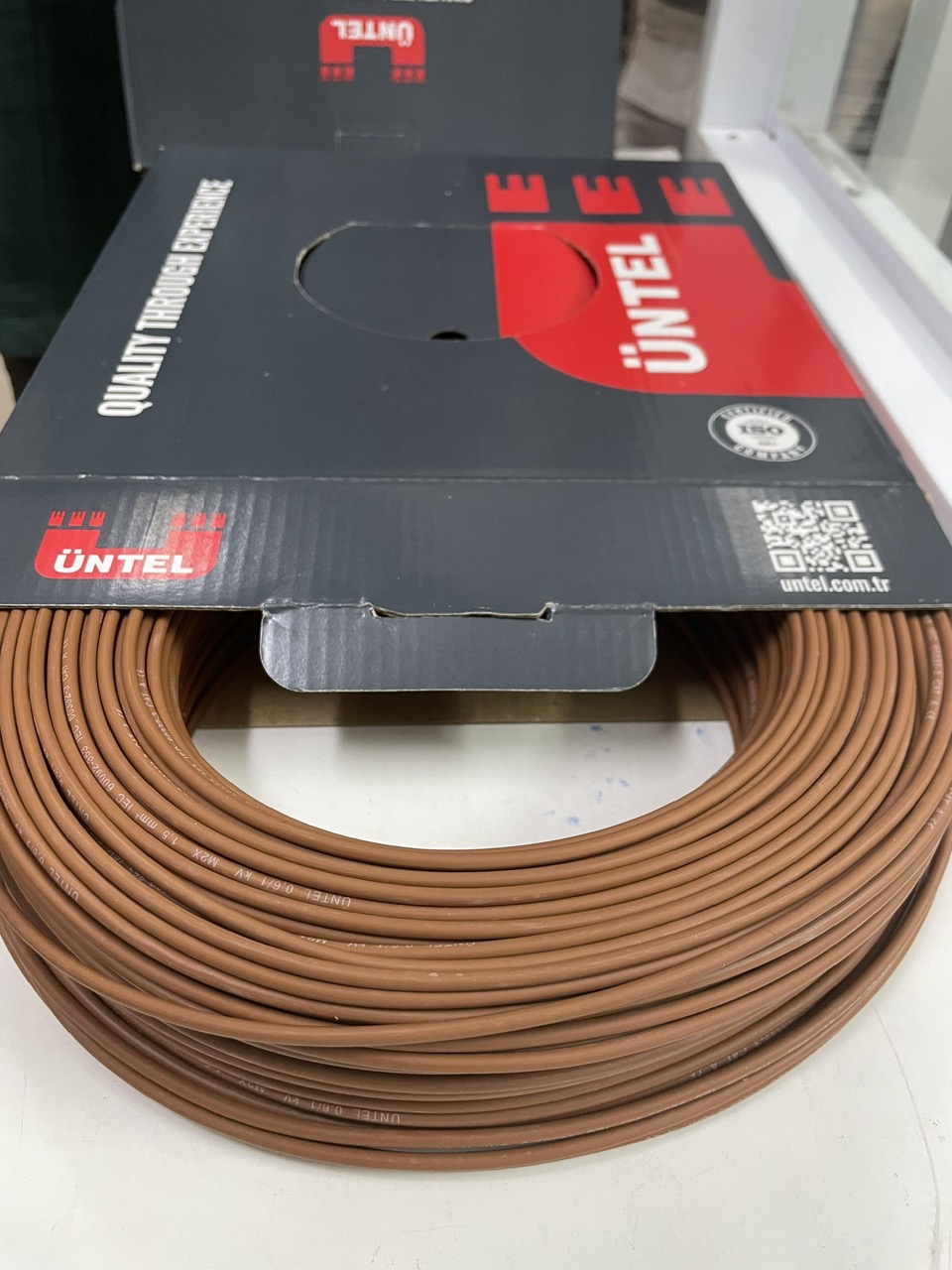

CABLE STRUCTURE
Conductor : Electrolytic, stranded, annealed bare copper wire IEC 60228 Class 5 (Class 2 and / or tinned on request)
Insulation : Halogen free, flame retardant, cross linked polyolefin compound (HF90).

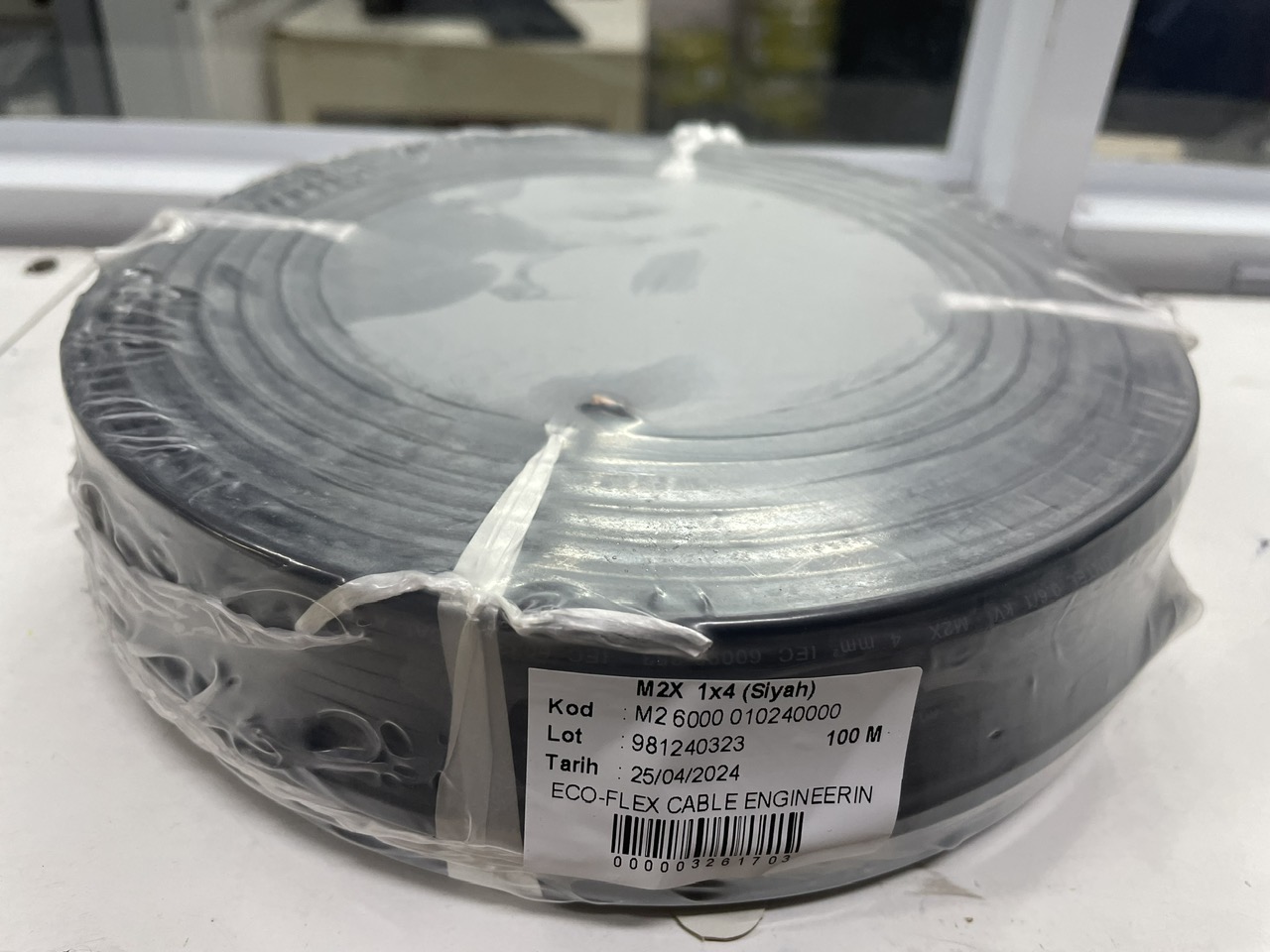

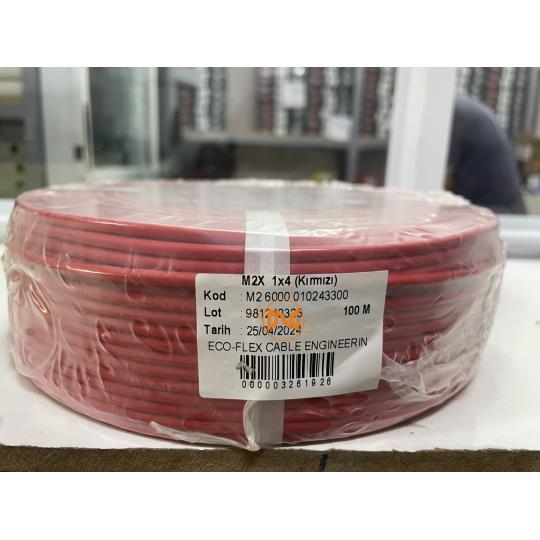

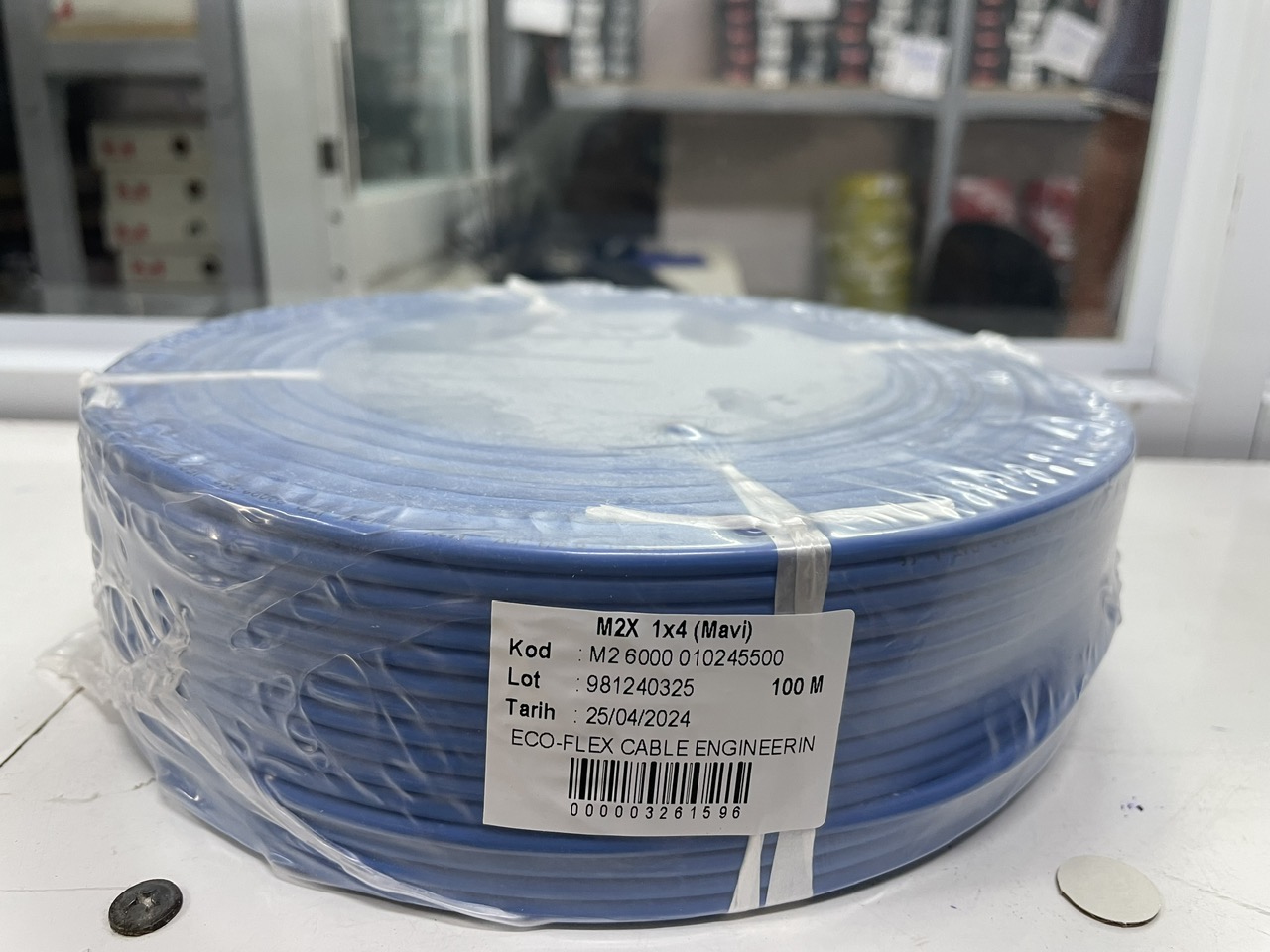

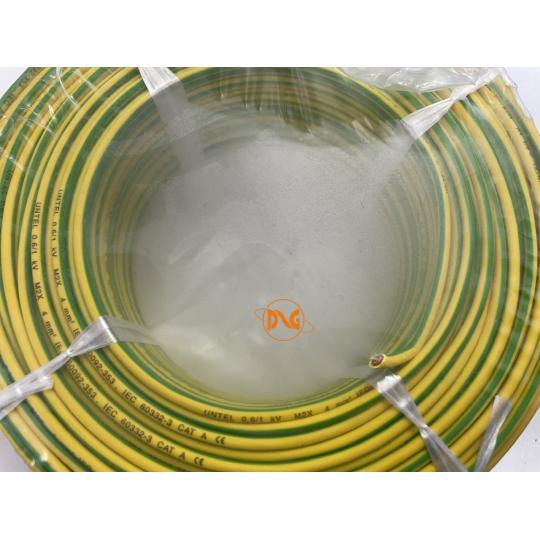

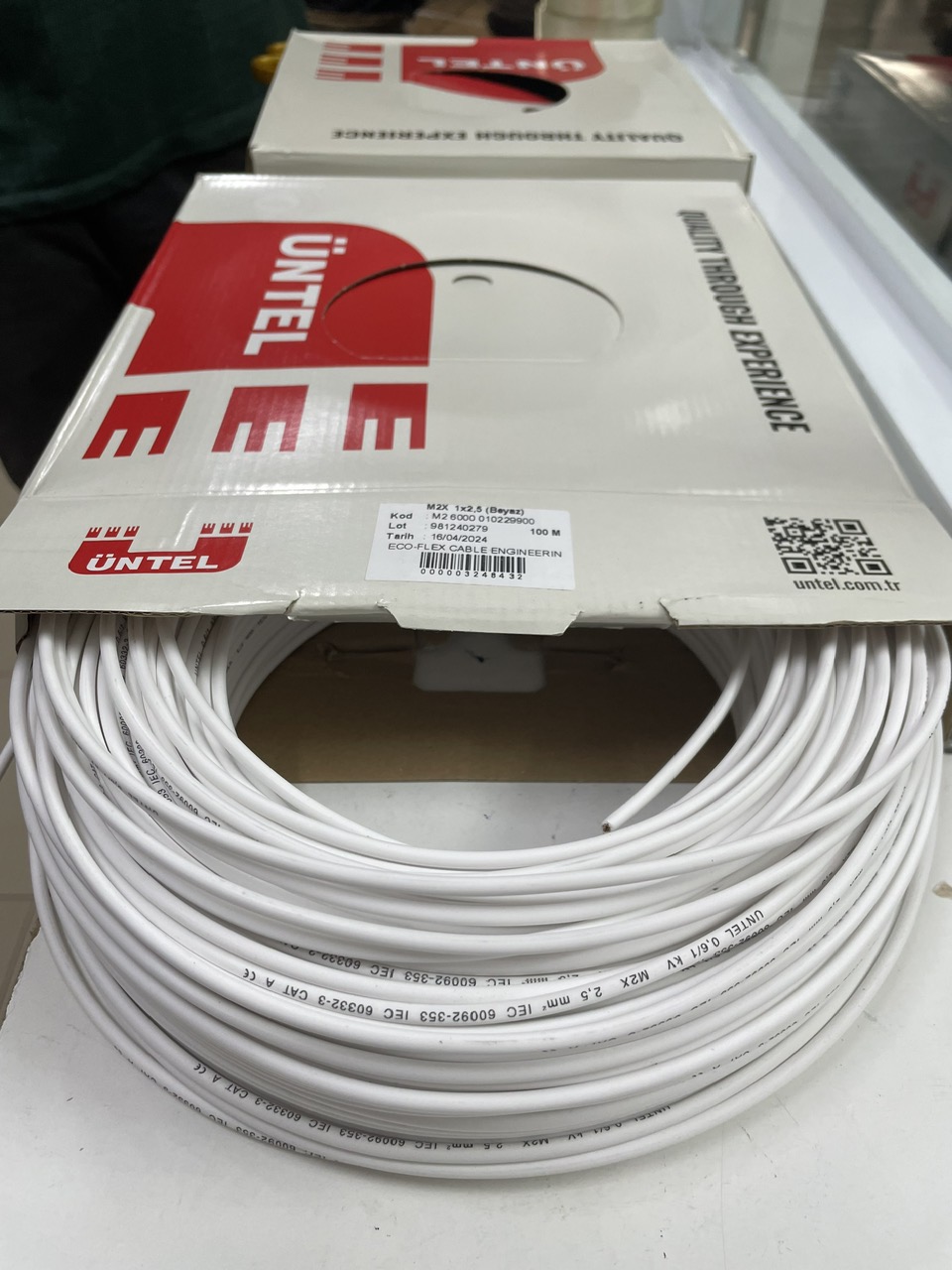

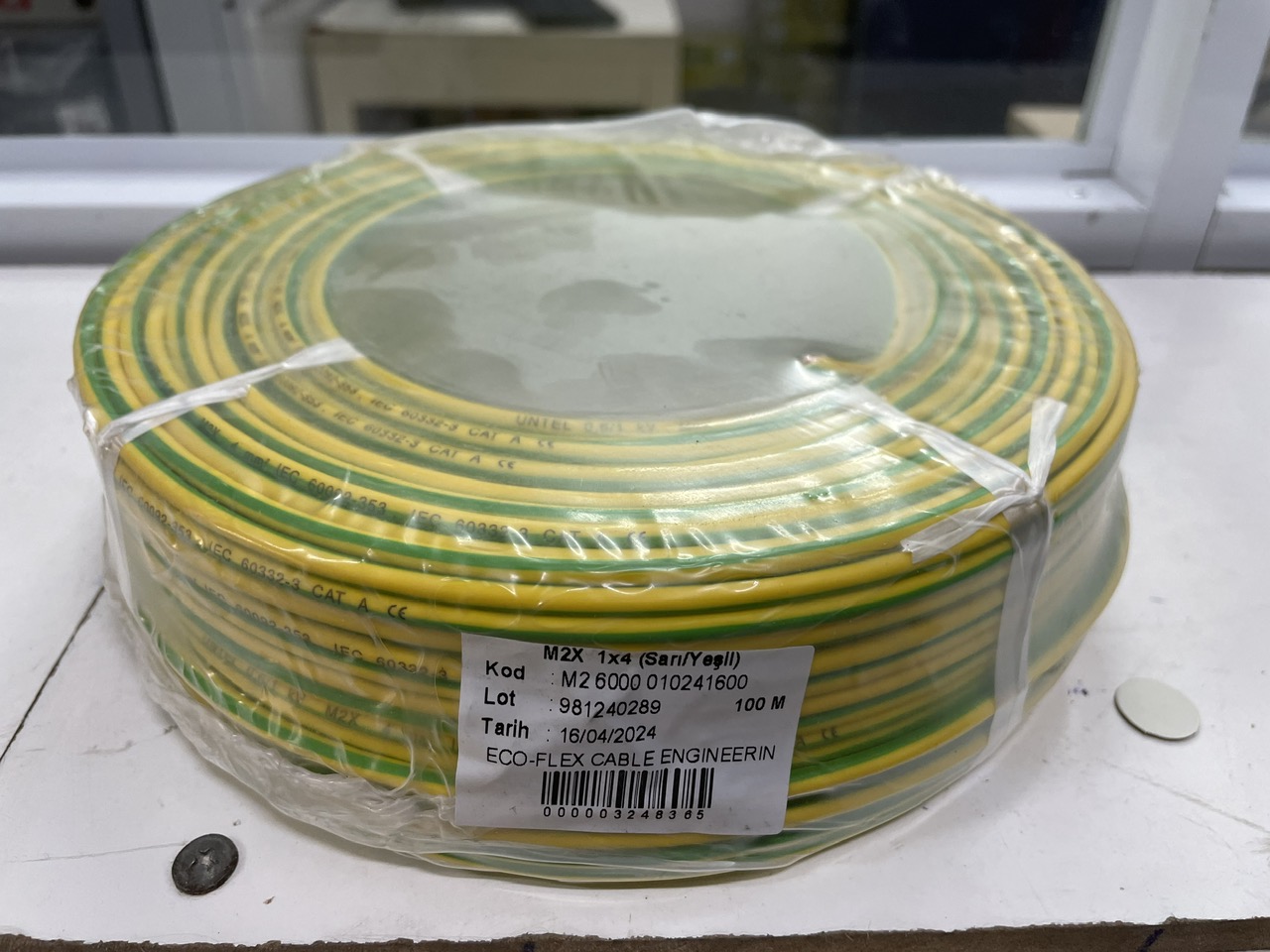

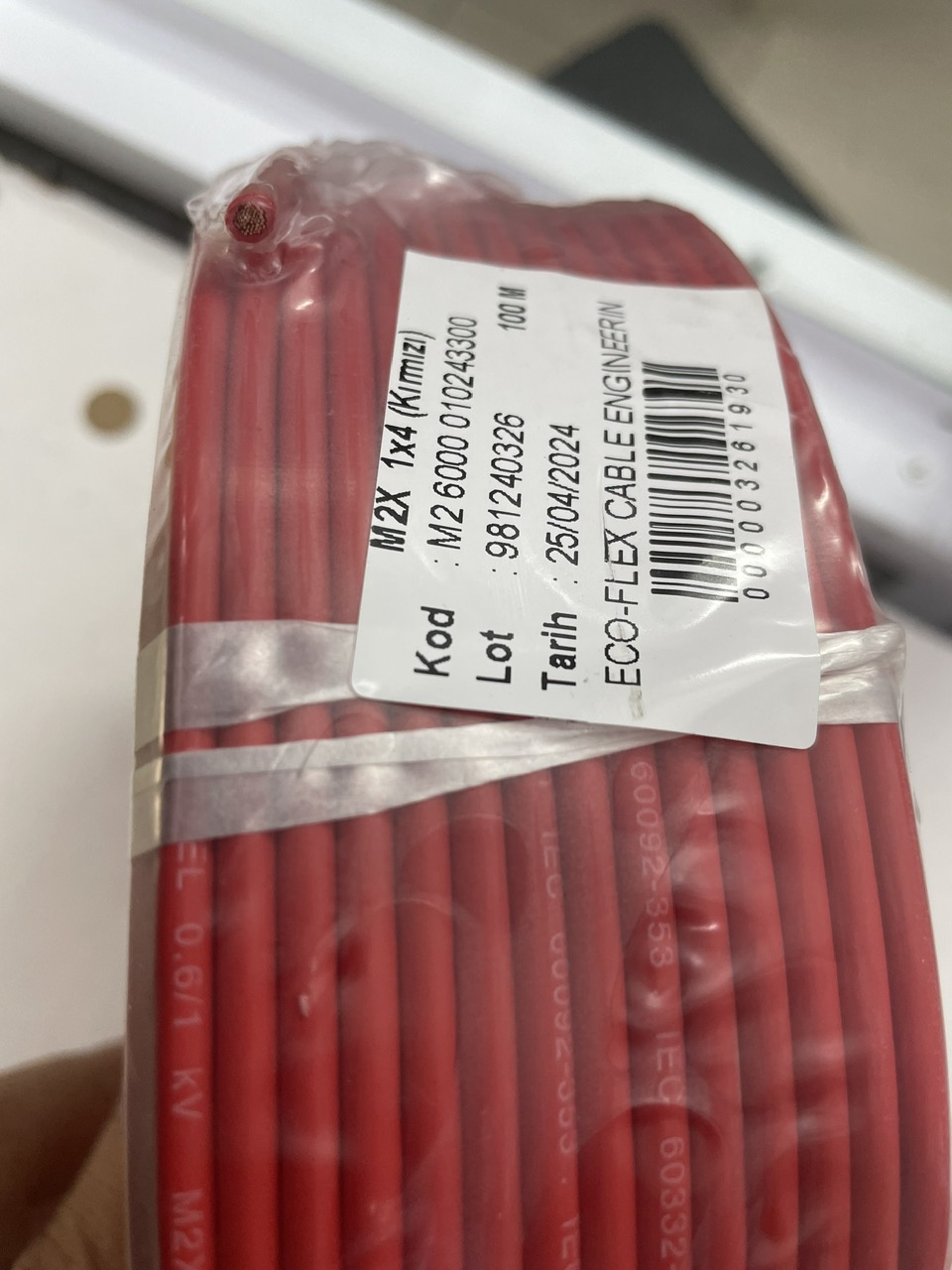

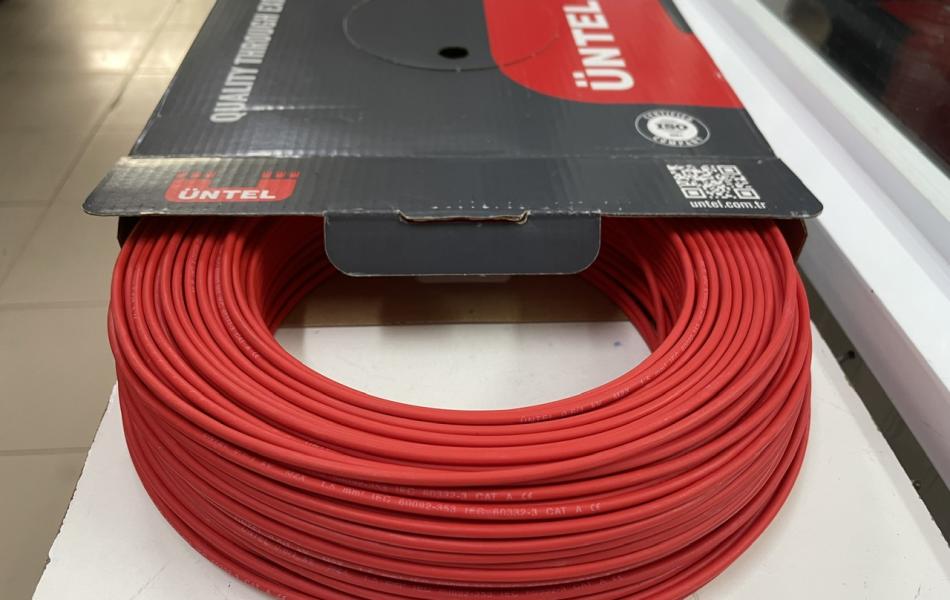

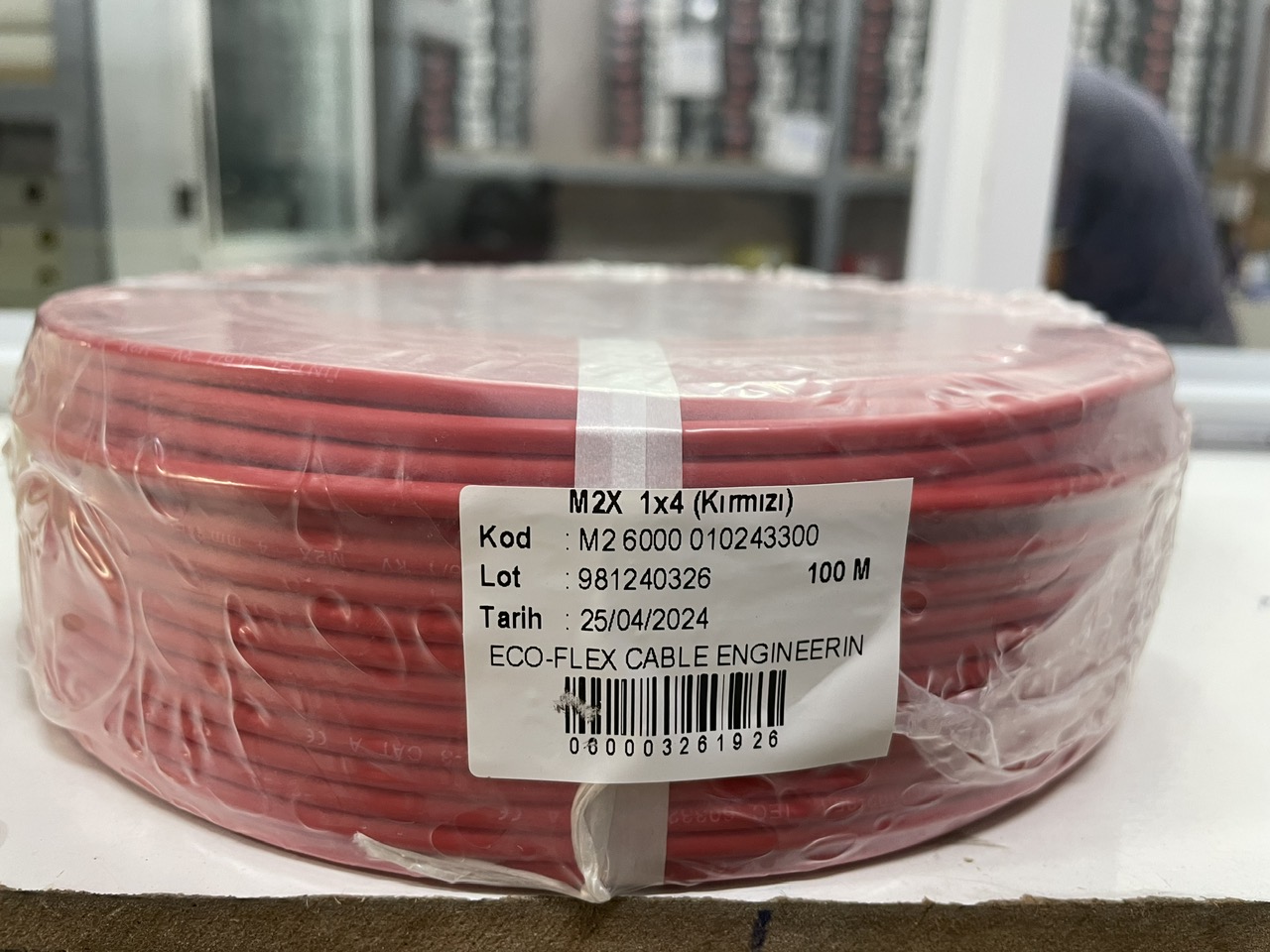

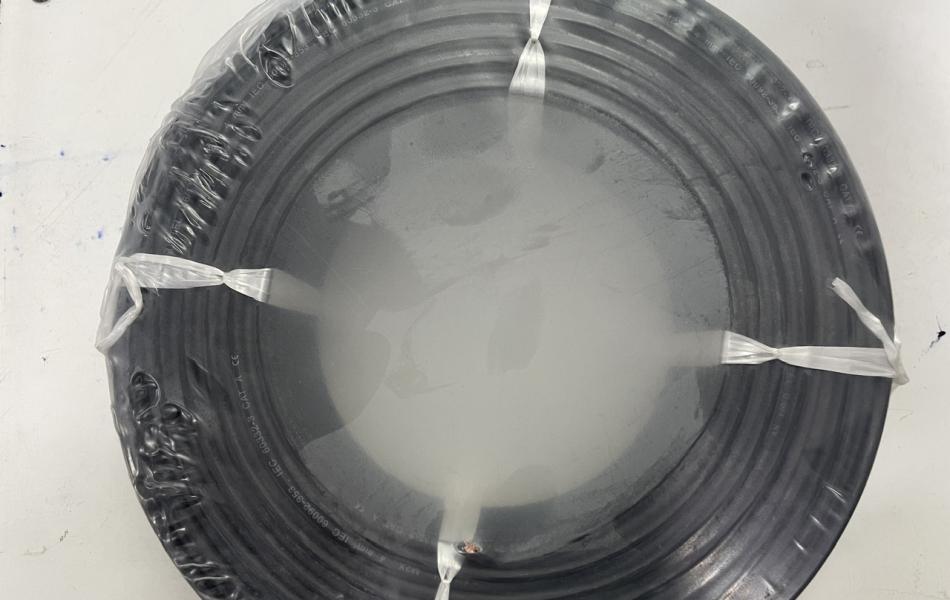

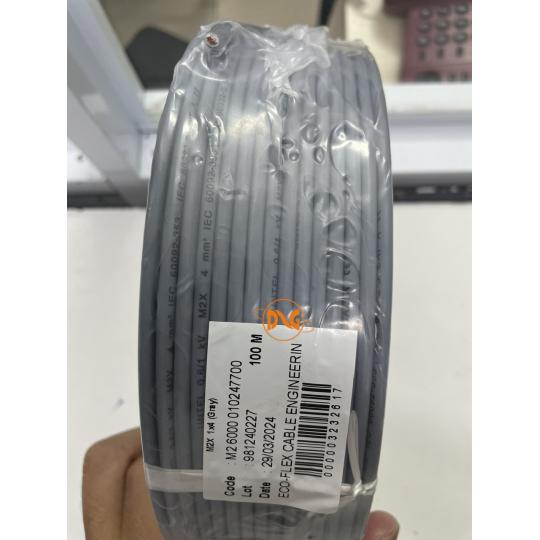

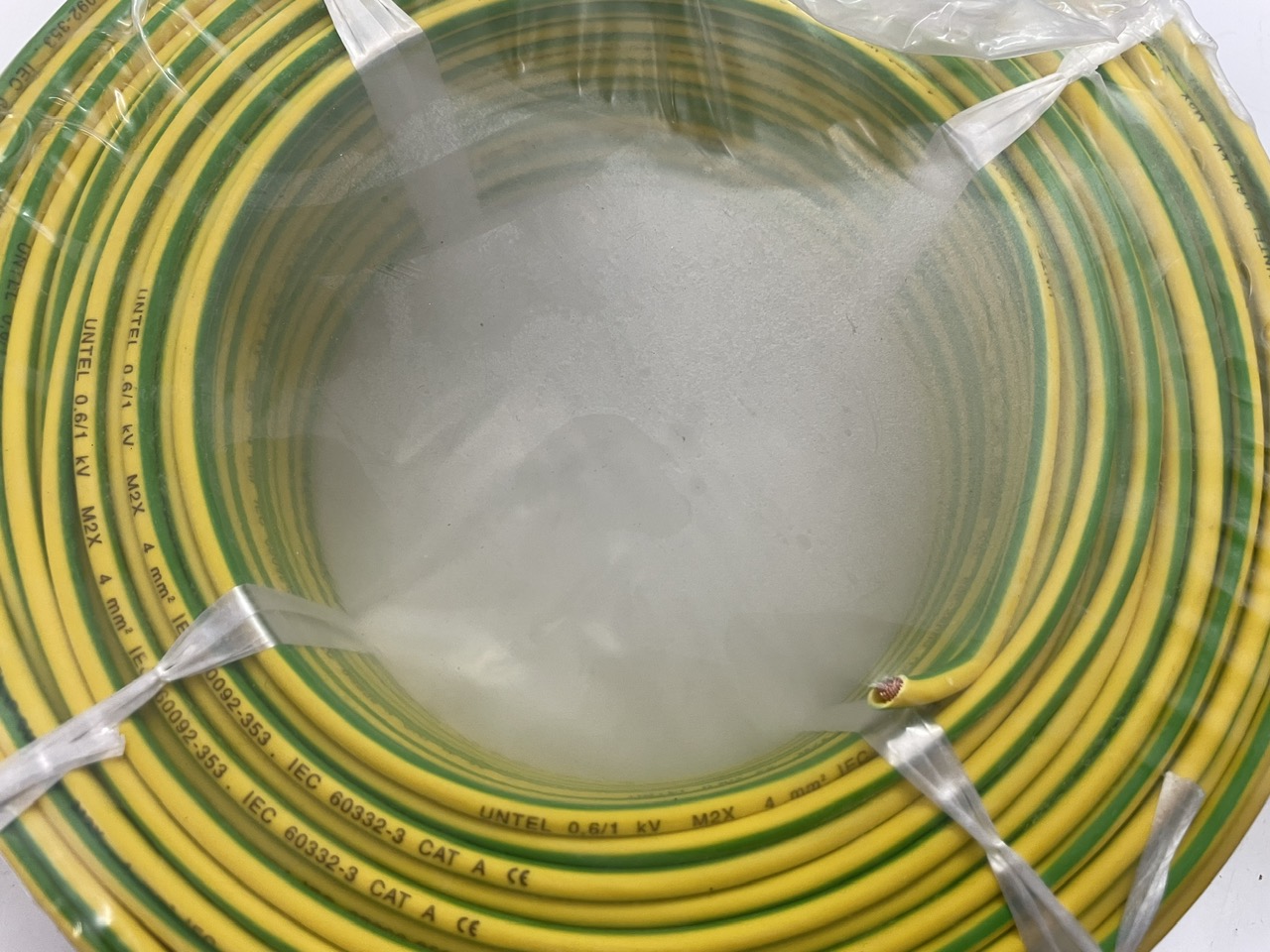

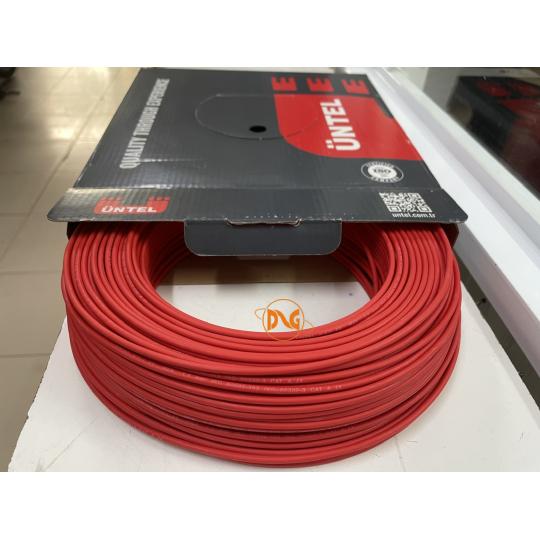

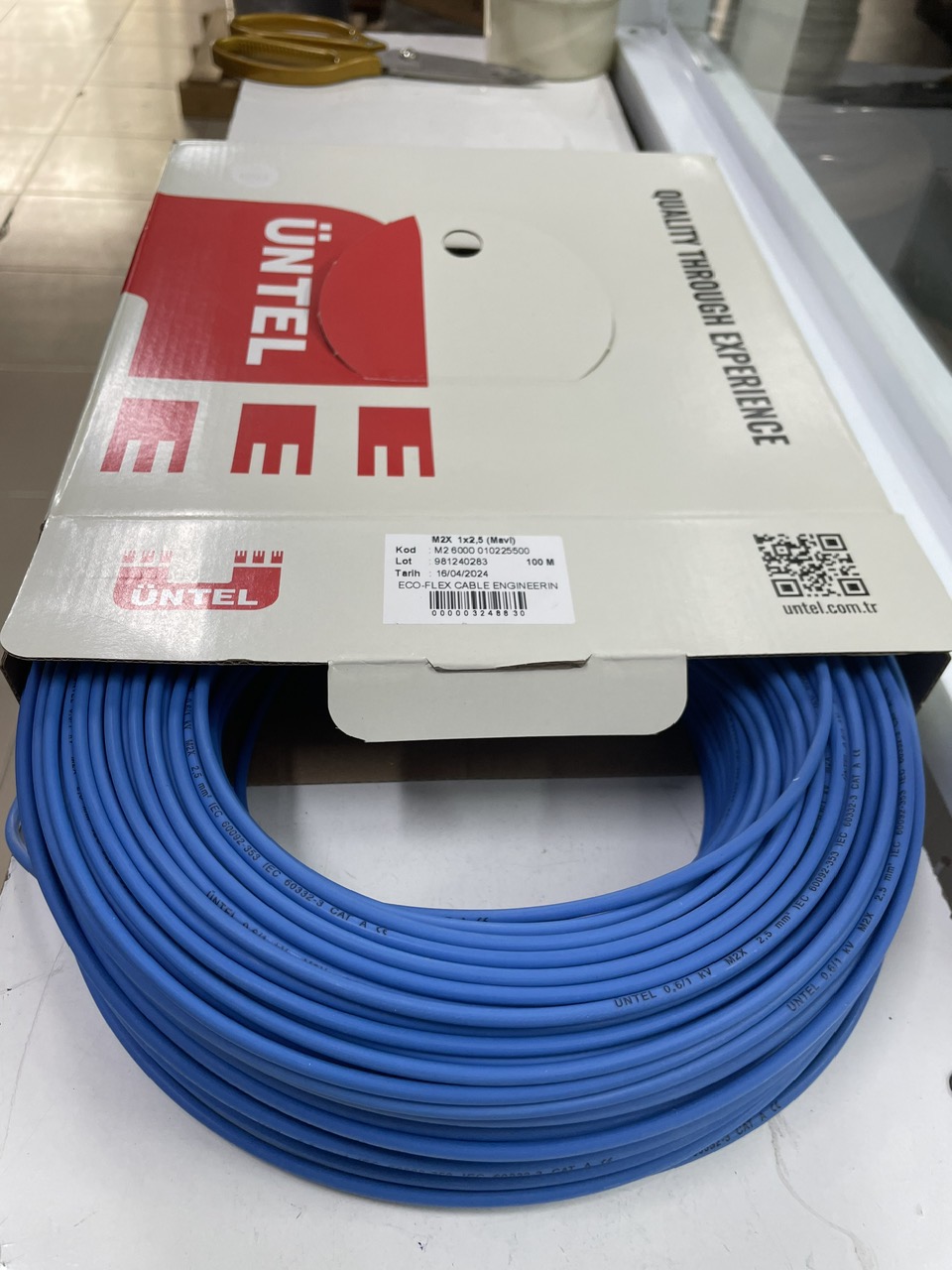

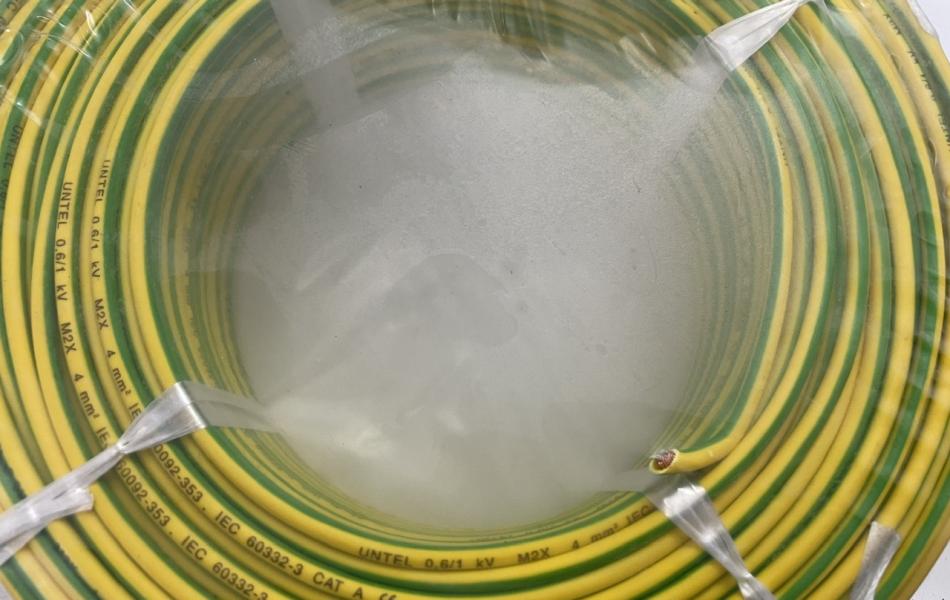

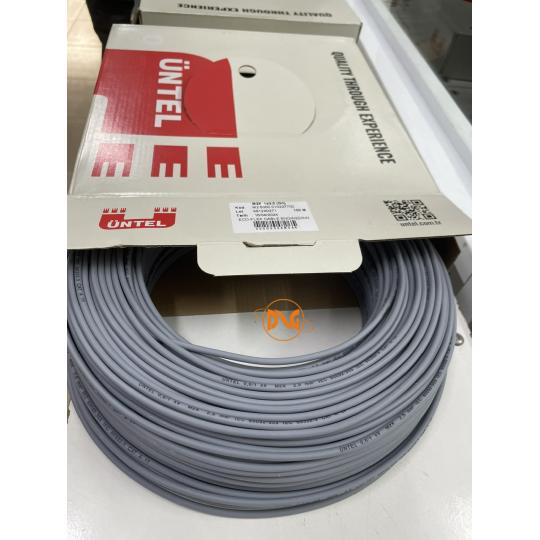

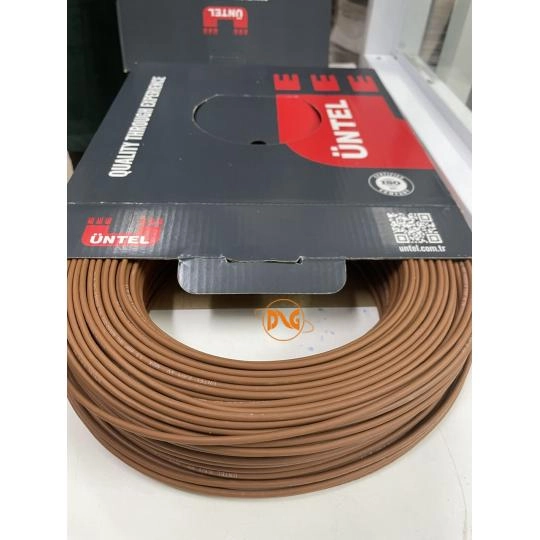

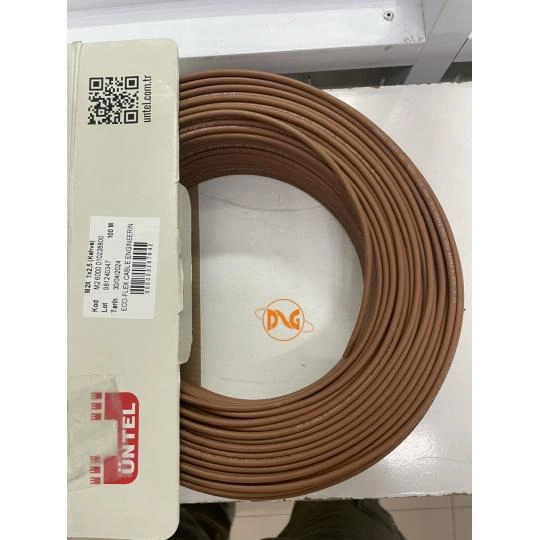

Color : Black, red, blue and other colours
STANDARDS & MAIN CHARACTERISTICS
Construction : IEC 60092 / 353
Tests And Material : IEC 60092 / 350-360
Flame Retardant : IEC 60332 / 1-2, IEC 60332 / 3-22 Cat A
Halogen Content : IEC 60754 / 1-2
Smoke Emission : IEC 61034 / 1-2 ( DIN EN 50268 / 1-2)
Ozon Resistance : IEC60811 / 403
Temperature Range : -40°C / + 90°C
Min. Bending Radius (fixed) : 4 x D
Rated Voltage : 0,6 / 1 kV
Test Voltage : 3,5 kV
Minimum recommended installation temperature -15°C
For core identification, diameter tolerances and other details see technical information section
Application
Fixed wiring in control panels, switch boadrs and various electrical enclosures and also used as fixed installation cables in various electromechanical and electronic equipments.
Construction : IEC 60092 / 353
Tests And Material : IEC 60092 / 350-360
Flame Retardant : IEC 60332 / 1-2, IEC 60332 / 3-22 Cat A
Halogen Content : IEC 60754 / 1-2
Smoke Emission : IEC 61034 / 1-2 ( DIN EN 50268 / 1-2)
Ozon Resistance : IEC60811 / 403
Temperature Range : -40°C / + 90°C
Min. Bending Radius (fixed) : 4 x D
Rated Voltage : 0,6 / 1 kV
Test Voltage : 3,5 kV
Minimum recommended installation temperature -15°C
For core identification, diameter tolerances and other details see technical information section
