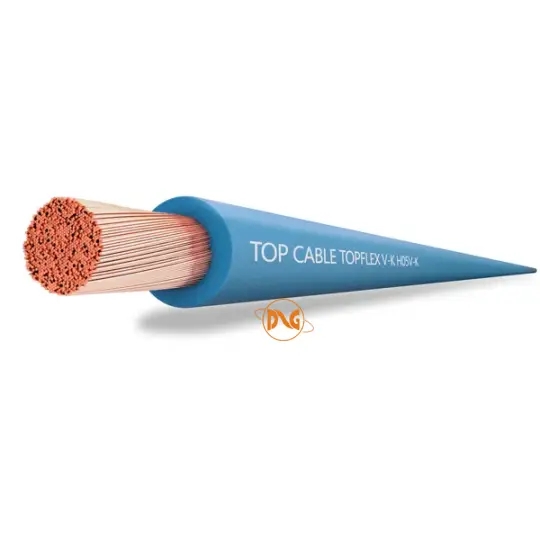

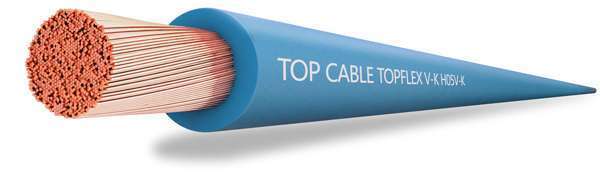

TOPFLEX® V-K H05V-K  & H07V-K

Electric cabinet wiring and domestic use.

ACCORDING TO: EN 50525-2-31 / IEC 60227-3

APPLICATION

opflex® H05V-K & H07V-K cable has been specially designed for insta-llations that require a flexible cable due to the complex nature of their layout. This cable is specially suitable for domestic wiring. It may also be used for equipment wiring, distributors, cabinets and lighting. It is also recommended for installation under false ceilings. Cables with cross section up to 1 mm2 are especially suited for signalling and monitoring installations.

CONSTRUCTION
Conductor
Electrolytic annealed copper conductor, class 5 (flexible), according to EN 60228 and IEC 60228.
Insulation
Extra sliding flexible polyvinyl chloride insulation (PVC), type TI1, accor-ding to EN 50363-3.  The standard identification of insulated conductors is the following:

CHARACTERISTICS

Electrical performance
Low voltage 300/500 V · 450/750 V.
Rated Voltage:  H05V-K (up to 1 mm2): 300/500 V.
   H07V-K (from 1,5 mm2 onwards): 450/750 V.
Thermal performance
Maximum service temperature: 70ºC.
Maximum short-circuit temperature: 160ºC (max. 5 s).
Minimum installation and handling temperature: 5ºC.
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1. Reduced halogen emission. Chlorine <15%.
Reaction to fire CPR: Eca, according to EN 50575.
Mechanical performance
Minimum bending radius: x5 cable diameter.
Environmental performance
Chemical performance:
 Chemical & Oil resistance: Acceptable.
Water resistance:
Water resistance: AD3 Sprays.
Installation conditions
In conduit.

Other
Meter by meter marking. (from 10 mm2 onwards).
Packaging
Small cross sections (from 0,75 mm2 to 6 mm2) are supplied in high resistant colour boxes (see table below). Medium cross sections (from 10 mm2 to 35 mm2) are supplied in 100 m sealed coils. Cross sections > 35mm2 are supplied in drums.

STANDARDS / COMPLIANCE

According to
EN 50525-2-31 / IEC 60227-3.

Standards and approvals
HAR / AENOR / SEC / RoHS / CE.
CPR (Construction Products Regulation)
